Removal [08/2021 -]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [04/2018 -]

  2. REMOVE LUGGAGE TRIM SERVICE HOLE COVER (for HV Model)

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    for A25A-FKS:

    Refer to PROCEDURE - Step 2

    for A25A-FXS:

    Refer to PROCEDURE - Step 3

    for 2GR-FKS:

    Refer to PROCEDURE - Step 2

  4. REMOVE FRONT DOOR ARMREST COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE FRONT DOOR TRIM POCKET COVER

    Refer to PROCEDURE - Step 5

  6. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

    Refer to PROCEDURE - Step 6

  7. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

    Refer to PROCEDURE - Step 7

  8. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  10. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

    Refer to PROCEDURE - Step 22

  11. REMOVE FRONT DOOR TRIM BRACKET

    Refer to PROCEDURE - Step 28

  12. REMOVE FRONT DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 29

  13. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP

    Refer to PROCEDURE - Step 30

  14. REMOVE FRONT DOOR PANEL PROTECTOR

    Refer to PROCEDURE - Step 31

  15. REMOVE FRONT DOOR VENT SEAL

    Refer to PROCEDURE - Step 32

  16. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 33

  17. REMOVE FRONT DOOR GLASS RUN

    Refer to PROCEDURE - Step 35

  18. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

    Refer to PROCEDURE - Step 36

  19. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 38

  20. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)

    Refer to PROCEDURE - Step 39

  21. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY

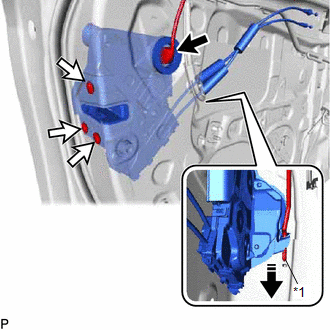

    1. Disconnect the connector.
      GTY930253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Door Lock Open Rod
      Remove in this Direction
    2. Using a T30 "TORX" socket wrench, remove the 3 screws.
    3. Slide the front door lock with motor assembly downward to disconnect the front door lock open rod and remove the front door lock with motor assembly and cables as a unit.
    4. When reusing the front door lock with motor assembly:

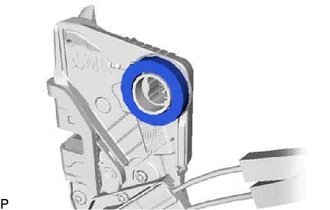

      1. Remove the door lock wiring harness seal from the front door lock with motor assembly.
        GTY848865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE FRONT DOOR LOCK OPEN LEVER REMOTE CONTROL CABLE

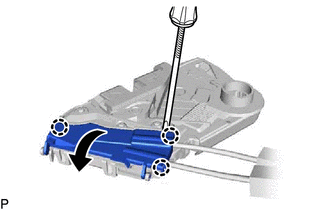

    1. Using a screwdriver, disengage the 3 claws and open the cover as shown in the illustration.
      GTY848866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

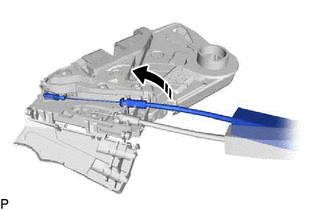

    2. Remove the front door lock open lever remote control cable as shown in the illustration.
      GTY895937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  23. REMOVE FRONT DOOR INSIDE LOCK/UNLOCK KNOB LOCKING CABLE

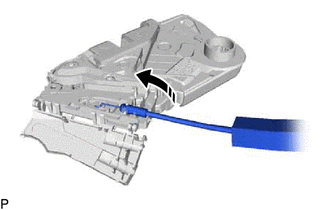

    1. Remove the front door inside lock/unlock knob locking cable as shown in the illustration.
      GTY941683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
