On-Vehicle Inspection [04/2018 -]: Procedure
- INSPECT WASHER NOZZLE SUB-ASSEMBLY
- Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.
Standard
Center of washer fluid contacts the windshield in the areas shown in the illustration.
HINT:
If the result is not as specified, replace the washer nozzle sub-assembly.

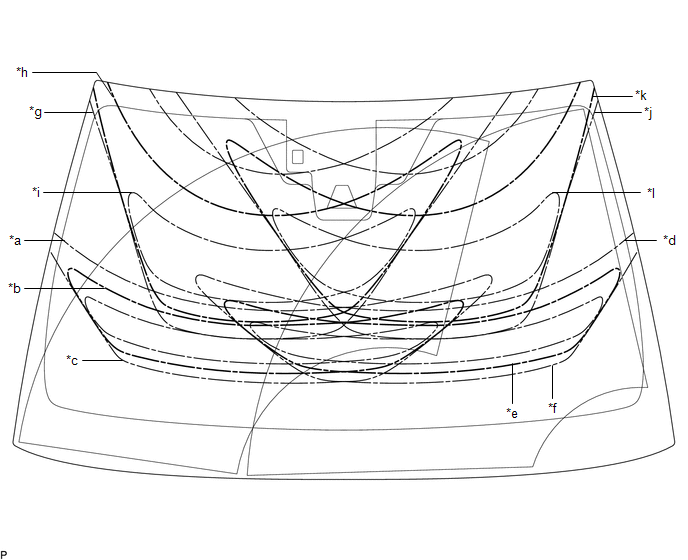

TEXT IN ILLUSTRATION*a Passenger Side Lower Spray (+1°) *b Passenger Side Lower Spray (0°) *c Passenger Side Lower Spray (-1°) *d Driver Side Lower Spray (+1°) *e Driver Side Lower Spray (0°) *f Driver Side Lower Spray (-1°) *g Passenger Side Upper Spray (+1°) *h Passenger Side Upper Spray (0°) *i Passenger Side Upper Spray (-1°) *j Driver Side Upper Spray (+1°) *k Driver Side Upper Spray (0°) *l Driver Side Upper Spray (-1°)
- Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.
