Removal [04/2018 -]: Procedure

  1. REMOVE FRONT WHEEL RH

    Refer to REMOVAL [04/2018 -]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

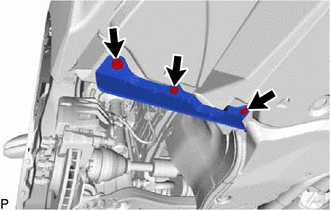

    1. Remove the 3 screws and front wheel opening extension pad RH.
      GTY925338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

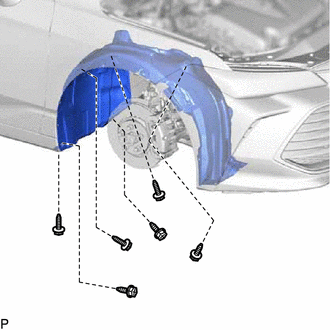

    1. Remove the 6 screws.
      GTY925343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

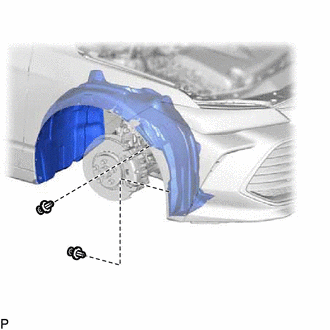

    2. Remove the 2 clips.
      GTY945422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

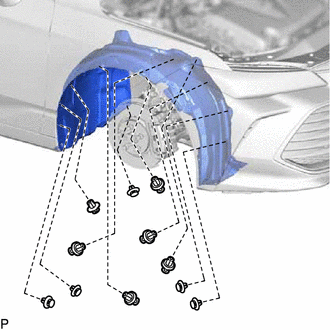

    3. Remove the 11 clips and front fender splash shield sub-assembly RH.
      GTY925342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. DRAIN WASHER FLUID

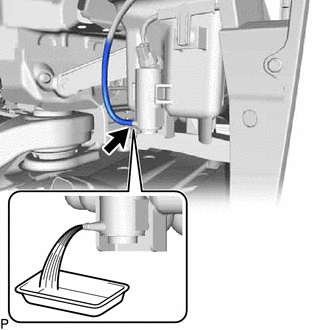

    1. Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.
      GTY925341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a container to collect the washer fluid.

  5. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

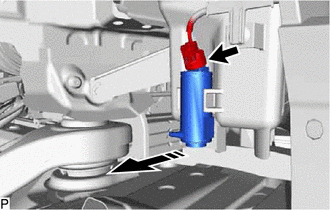

    1. Disconnect the connector.
      GTY933516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the windshield washer motor and pump assembly as shown in the illustration.
