Removal [04/2018 - ]: Procedure

  1. REMOVE ROOF CONSOLE BOX ASSEMBLY

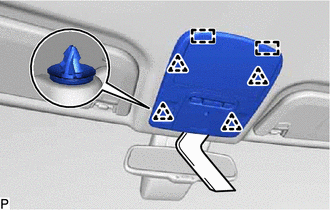

    1. for Normal Roof:
      1. Using a moulding remover, disengage the 4 clips.
        GTY924865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 2 guides.

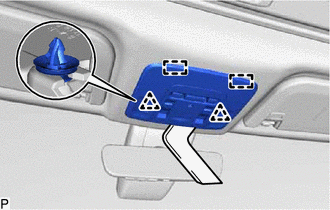

    2. for Moon Roof:
      1. Using a moulding remover, disengage the 2 clips.
        GTY924864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 2 guides.
    3. Disconnect each connector to remove the roof console box assembly.
