Removal [04/2018 - ]: Procedure

  1. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

    Refer to REMOVAL [04/2018 - ]

  2. REMOVE INTERIOR ILLUMINATION LIGHT SUB-ASSEMBLY

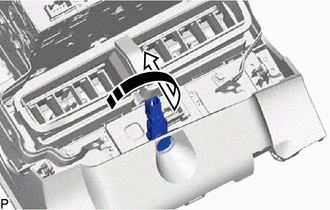

    1. Turn the interior illumination light sub-assembly as shown in the illustration to remove it.
      GTY930897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
