Removal [04/2018 - 08/2019]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SPOILER SUB-ASSEMBLY

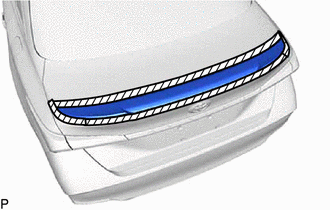

    1. Apply protective tape around the rear spoiler sub-assembly as shown in the illustration.
      GTY907991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

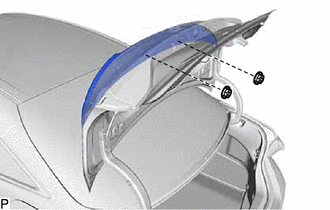

    2. Remove the 2 nuts.
      GTY932780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

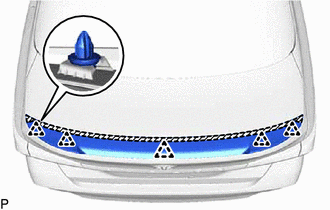

    3. Separate the double-sided tape and disengage the 5 clips to remove the rear spoiler sub-assembly.
      GTY919213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape
