Components [08/2019 - ]

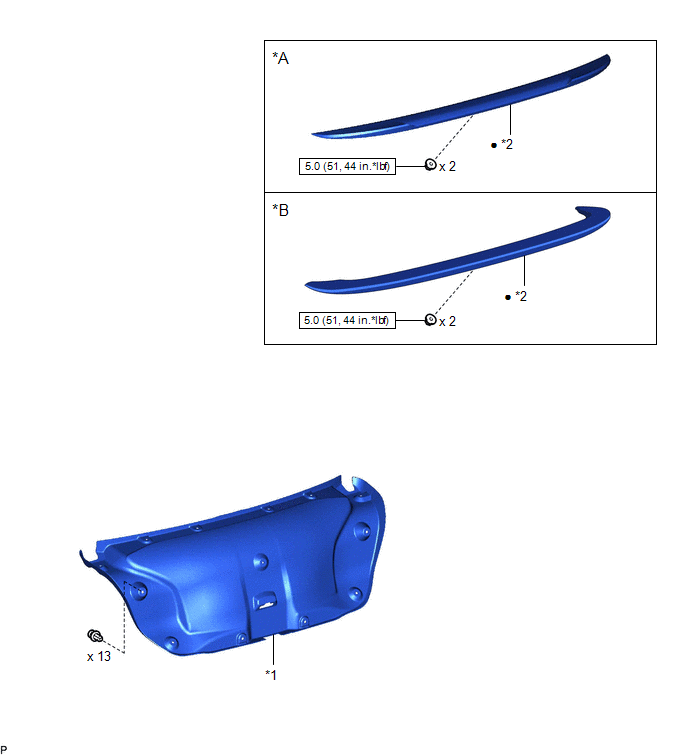

Fig 1: Rear Spoiler Replacement Components With Torque Specifications [08/2019 - ]
GTY940382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A except TRD *B for TRD
*1 LUGGAGE COMPARTMENT DOOR COVER *2 REAR SPOILER SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
