Components [04/2018 - 08/2019]

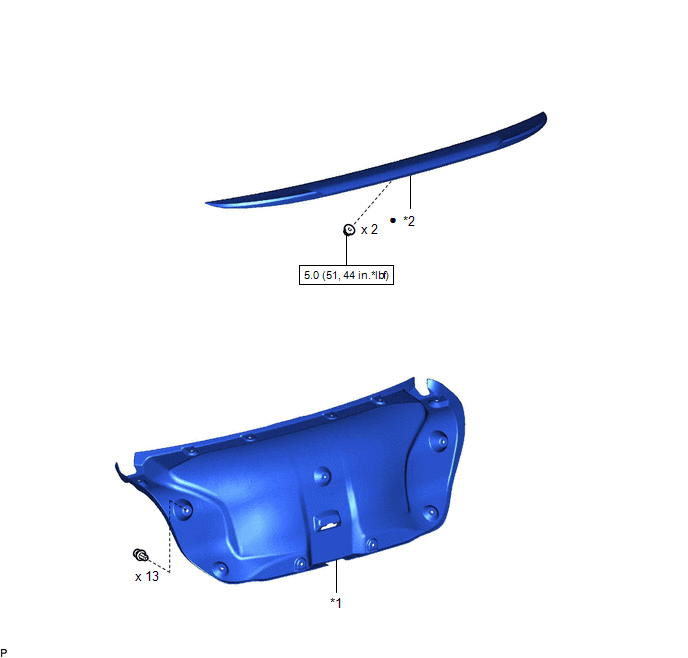

Fig 1: Rear Spoiler Replacement Components With Torque Specifications [04/2018 - 08/2019]
GTY905089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 LUGGAGE COMPARTMENT DOOR COVER *2 REAR SPOILER SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
