Removal [04/2018 - ]: Procedure

  1. REMOVE REAR COMBINATION LIGHT COVER LH

    Refer to PROCEDURE - Step 9

  2. REMOVE REAR COMBINATION LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE REAR BUMPER ASSEMBLY

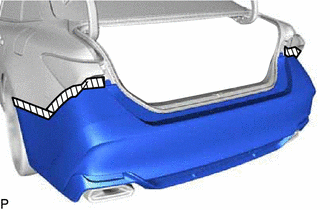

    1. Apply protective tape around the rear bumper assembly as shown in the illustration.
      GTY876500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

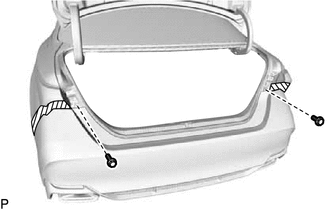

    2. Remove the 2 screws.
      GTY863597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

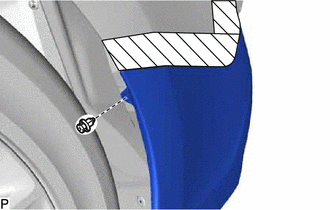

    3. Remove the clip.
      GTY863594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

    4. for Gasoline Model:

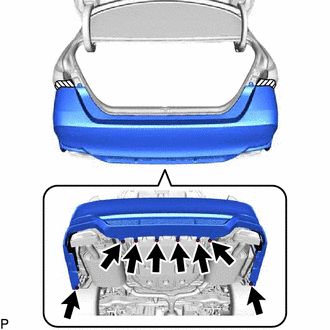

      1. Remove the 8 clips.
        GTY931777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. for HV Model:

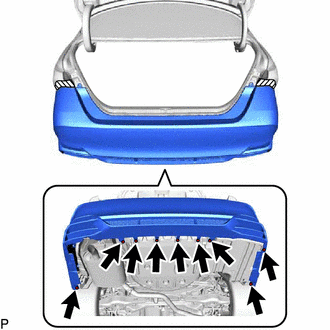

      1. Remove the 9 clips.
        GTY931778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

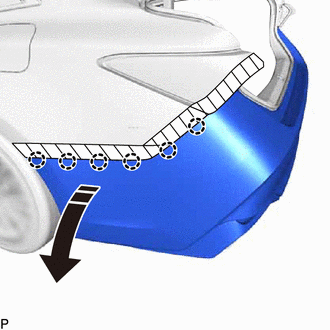

    6. Disengage the 6 claws as shown in the illustration.
      GTY896294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

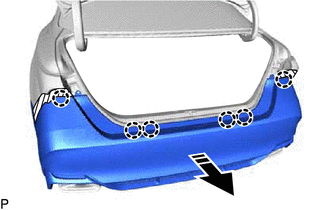

    7. Disengage the 6 claws to remove the rear bumper assembly as shown in the illustration.
      GTY909750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    8. w/ Intuitive Parking Assist System:
      1. Disconnect the connector to remove the rear bumper assembly.
