Disassembly [08/2019 - ]: Procedure

  1. REMOVE REAR CENTER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    HINT:

    Use the same procedure for the RH side and LH side.

    Refer to PROCEDURE - Step 2

  2. REMOVE REAR CORNER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    HINT:

    Use the same procedure for the RH side and LH side.

    Refer to PROCEDURE - Step 3

  3. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    HINT:

    Use the same procedure for the RH side and LH side.

    Refer to PROCEDURE - Step 5

  4. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    HINT:

    Use the same procedure for the RH side and LH side.

    Refer to PROCEDURE - Step 6

  5. REMOVE FOG LIGHT SEAL (w/ Intuitive Parking Assist System)

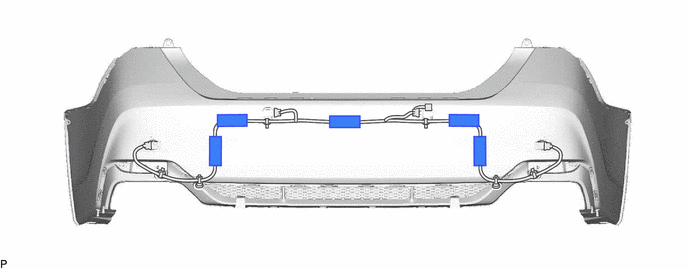

    1. Remove the 5 fog light seals.
      GTY867731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 LUGGAGE ROOM WIRE (w/ Intuitive Parking Assist System)
  7. REMOVE REFLEX REFLECTOR ASSEMBLY LH
    GTY867730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the screw.

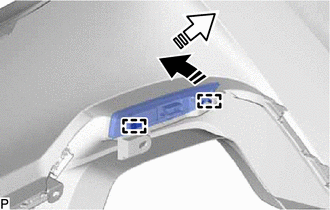

    2. Disengage the 2 guides to remove the reflex reflector assembly LH as shown in the illustration.
      GTY909211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  8. REMOVE REFLEX REFLECTOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  9. REMOVE LOWER REAR BUMPER COVER (except TRD)
    1. Remove the 2 clips (A) and 4 clips (B).
      GTY921053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 14 claws and 2 guides to remove the lower rear bumper cover.
      GTY867733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 1 REAR SPOILER SUB-ASSEMBLY (for TRD)
    1. Remove the 2 clips (A) and 4 clips (B).
      GTY857031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 screws.
      GTY919084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate the double-sided tape.
      GTY869758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape - -
    4. Disengage the 10 claws and 2 guides to remove the No. 1 rear spoiler sub-assembly.
      GTY919099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR BUMPER SIDE RETAINER LH
    1. Remove the screw.
      GTY867728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

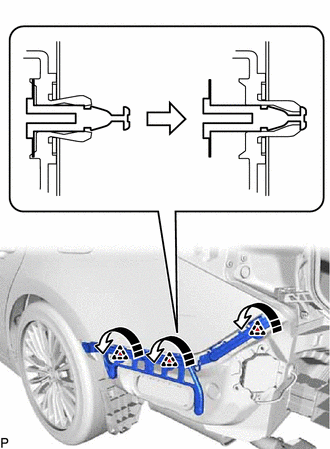

    2. Disengage the 3 clips as shown in the illustration.
      GTY847366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

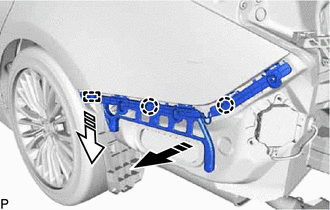

    3. Disengage the 2 claws as shown in the illustration.
      GTY868419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    4. Disengage the guide to remove the rear bumper side retainer LH.
  12. REMOVE REAR BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE SPARE WHEEL COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  14. REMOVE BAGGAGE HOLDER NET

    Refer to PROCEDURE - Step 2

  15. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 3

  16. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 4

  17. REMOVE LUGGAGE COMPARTMENT INNER TRIM PAD

    Refer to PROCEDURE - Step 5

  18. REMOVE LUGGAGE TRIM SERVICE HOLE COVER (for HV Model)

    Refer to PROCEDURE - Step 2 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 2 [08/2021 - ]

  19. REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER RH

    for Gasoline Model: Refer to PROCEDURE - Step 6

    for HV Model: Refer to PROCEDURE - Step 8

  20. REMOVE LUGGAGE COMPARTMENT TRIM INNER COVER LH

    Refer to PROCEDURE - Step 9

  21. REMOVE REAR BUMPER UPPER RETAINER LH
    1. Remove the rear combination light assembly LH.

      Refer to PROCEDURE - Step 10

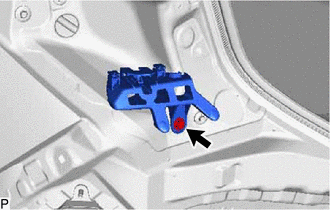

    2. Remove the screw and rear bumper upper retainer LH.
      GTY867737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE REAR BUMPER UPPER RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  23. REMOVE REAR BUMPER SIDE SEAL LH
    1. Remove the 2 grommets.
      GTY867743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clips and rear bumper side seal LH.
      GTY867740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE REAR BUMPER SIDE SEAL RH
    1. Remove the 2 grommets.
      GTY867741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Gasoline Model:
      GTY913182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for HV Model
      1. Remove the 2 clips and rear bumper side seal RH.
    3. for HV Model:
      1. Remove the 3 clips and rear bumper side seal RH.
  25. REMOVE REAR BUMPER ENERGY ABSORBER

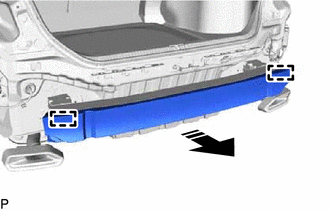

    1. Disengage the 2 guides to remove the rear bumper energy absorber as shown in the illustration.
      GTY854744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  26. REMOVE REAR BUMPER REINFORCEMENT
    1. Remove the 6 bolts and rear bumper reinforcement.
      GTY867672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
