Reassembly [04/2018 - 08/2021]: Procedure

HINT:

When installing the No. 2 radiator grille seal, heat the radiator shutter using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the radiator shutter surface.
   1. Using a heat light, heat the radiator shutter surface.
   2. Remove any remaining double-sided tape from the radiator shutter.
   3. Wipe off any tape adhesive residue with cleaner.
2. Remove the release paper from a new No. 2 radiator grille seal.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

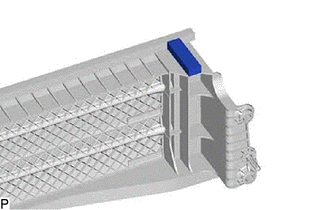

3. Install the No. 2 radiator grille seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • If the No. 2 radiator grille seal has been removed, it must be replaced with a new one as it may be deformed or the strength of its adhesive may be deteriorated.
   • Press the No. 2 radiator grille seal firmly to install it.

HINT:

When installing the No. 1 radiator grille seal, heat the radiator shutter using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the radiator shutter surface.
   1. Using a heat light, heat the radiator shutter surface.
   2. Remove any remaining double-sided tape from the radiator shutter.
   3. Wipe off any tape adhesive residue with cleaner.
2. Remove the release paper from a new No. 1 radiator grille seal.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

3. Install the No. 1 radiator grille seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • If the No. 1 radiator grille seal has been removed, it must be replaced with a new one as it may be deformed or the strength of its adhesive may be deteriorated.
   • Press the No. 1 radiator grille seal firmly to install it.

HINT:

• When installing the No. 3 radiator grille seal, heat the radiator shutter using a heat light.
• Use the same procedure for the RH side and LH side.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the radiator shutter surface.
   1. Using a heat light, heat the radiator shutter surface.
   2. Remove any remaining double-sided tape from the radiator shutter.
   3. Wipe off any tape adhesive residue with cleaner.
2. Remove the release paper from a new No. 3 radiator grille seal.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

3. Install the No. 3 radiator grille seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • If the No. 3 radiator grille seal has been removed, it must be replaced with a new one as it may be deformed or the strength of its adhesive may be deteriorated.
   • Press the No. 3 radiator grille seal firmly to install it.

1. When installing a new swing grille actuator assembly:

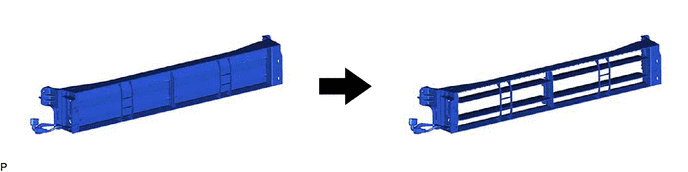

   1. Open the grille shutter fin as shown in the illustration.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

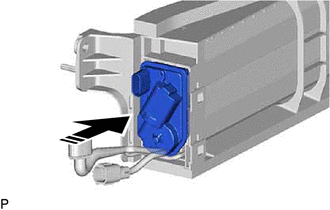

2. Install the swing grille actuator assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

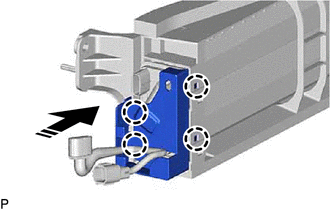

1. Engage the 4 claws to install the motor cover as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

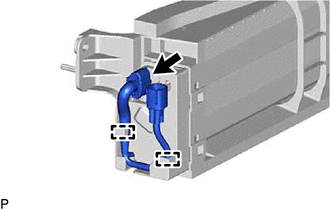

2. Engage the 2 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Connect the connector.
