Disassembly [04/2018 - 08/2021]: Procedure

  1. REMOVE MOTOR COVER
    1. Disconnect the connector.
      GTY864352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps.

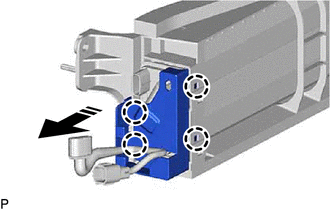

    3. Disengage the 4 claws to remove the motor cover as shown in the illustration.
      GTY931476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE SWING GRILLE ACTUATOR ASSEMBLY

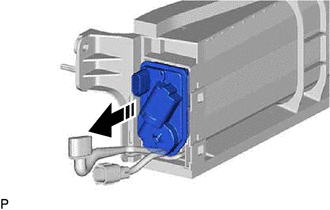

    1. Remove the swing grille actuator assembly as shown in the illustration.
      GTY876522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  3. REMOVE NO. 3 RADIATOR GRILLE SEAL
    1. Remove the No. 3 radiator grille seal.
      GTY931945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  4. REMOVE NO. 1 RADIATOR GRILLE SEAL
    1. Remove the No. 1 radiator grille seal.
      GTY864356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 RADIATOR GRILLE SEAL
    1. Remove the No. 2 radiator grille seal.
      GTY864354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
