Components [08/2021 - ]

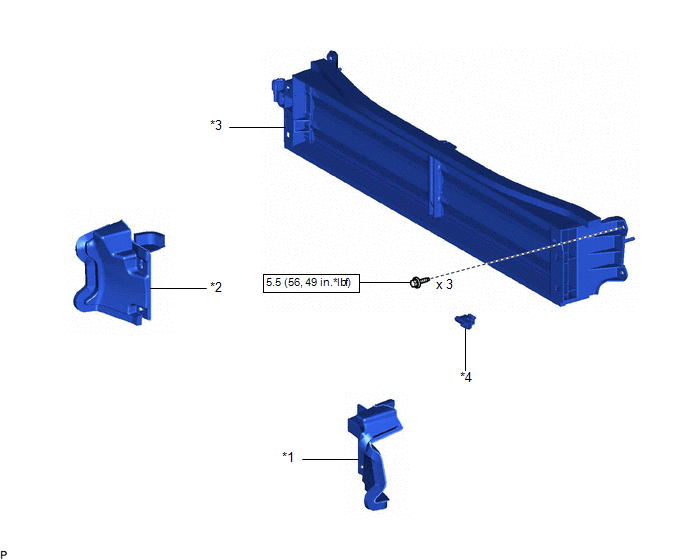

Fig 1: Grille Shutter Replacement Components With Torque Specifications (1 Of 2) [08/2021 - ]
GTY1026400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT RADIATOR SIDE AIR GUIDE PLATE LH *2 FRONT RADIATOR SIDE AIR GUIDE PLATE RH
*3 RADIATOR SHUTTER SUB-ASSEMBLY *4 THERMISTOR ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -

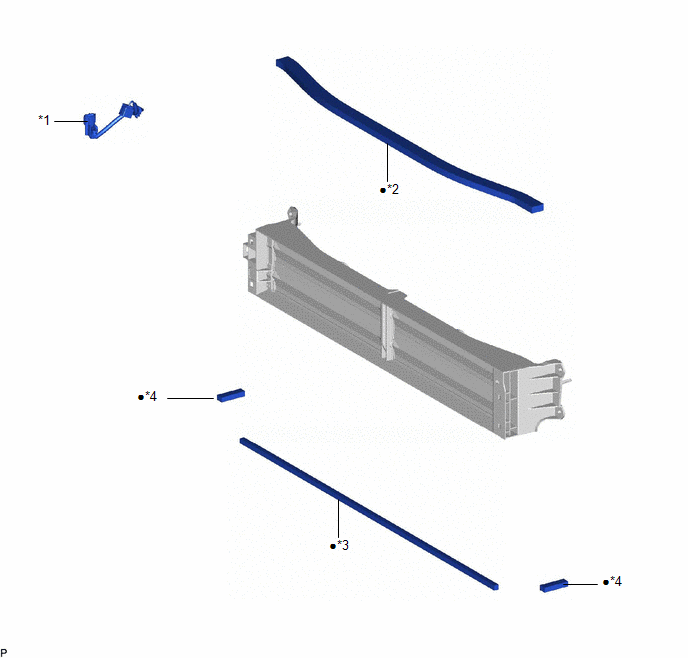

Fig 2: Grille Shutter Replacement Components (2 Of 2) [08/2021 - ]
GTY1026281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 EXTENSION WIRE ASSEMBLY *2 NO. 1 RADIATOR GRILLE SEAL
*3 NO. 2 RADIATOR GRILLE SEAL *4 NO. 3 RADIATOR GRILLE SEAL
• Non-reusable part - -
