Components [04/2018 - 08/2019]

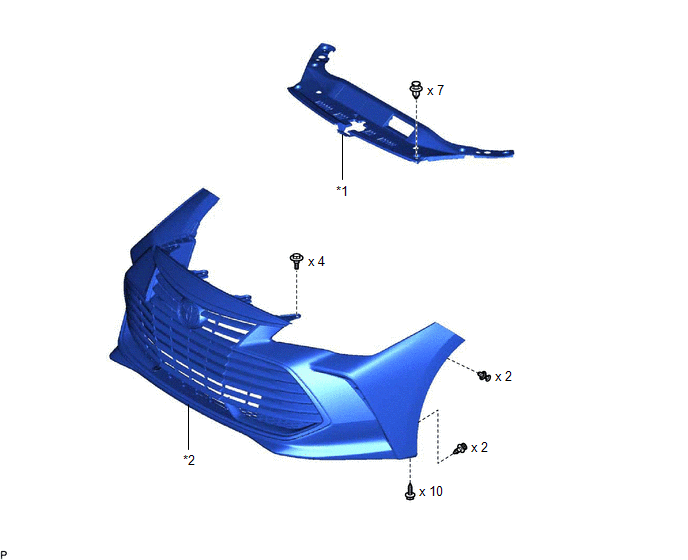

Fig 1: Front Bumper Replacement Components (1 Of 8) [04/2018 - 08/2019]
GTY902118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COOL AIR INTAKE DUCT SEAL *2 FRONT BUMPER ASSEMBLY

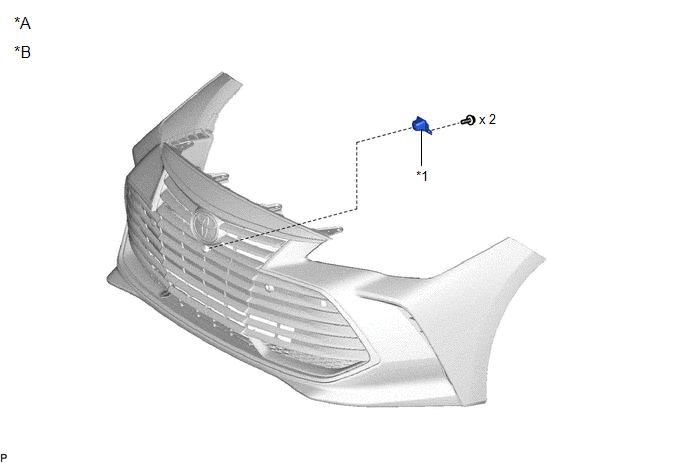

Fig 2: Front Bumper Replacement Components (2 Of 8) [04/2018 - 08/2019]
GTY903502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Panoramic View Monitor System *B for Bar Type Radiator Grille
*1 FRONT TELEVISION CAMERA ASSEMBLY - -

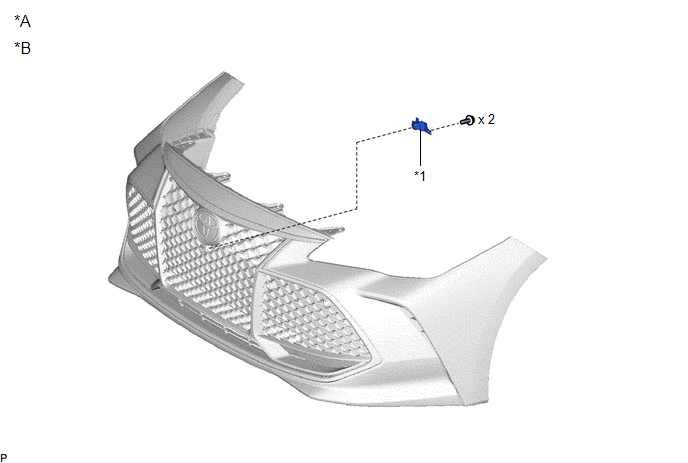

Fig 3: Front Bumper Replacement Components (3 Of 8) [04/2018 - 08/2019]
GTY921100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Panoramic View Monitor System *B for Mesh Type Radiator Grille
*1 FRONT TELEVISION CAMERA ASSEMBLY - -

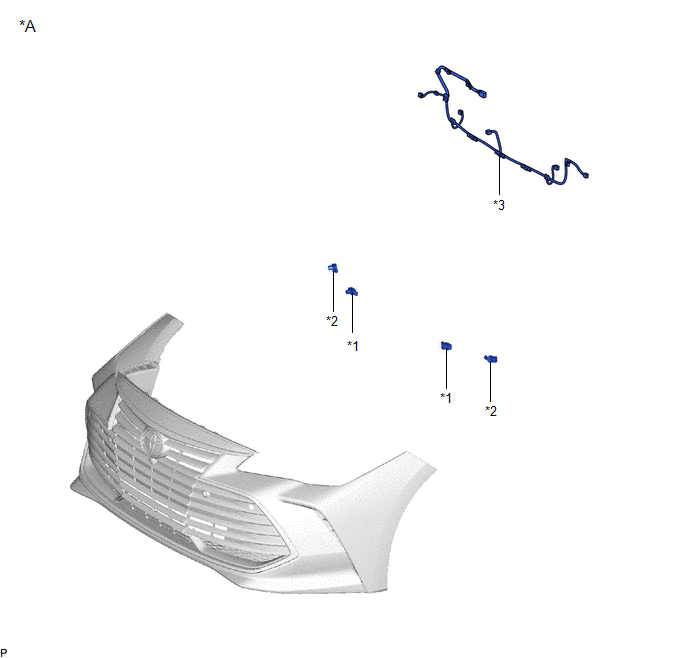

Fig 4: Front Bumper Replacement Components (4 Of 8) [04/2018 - 08/2019]
GTY924424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Intuitive Parking Assist System - -
*1 FRONT CENTER ULTRASONIC SENSOR *2 FRONT CORNER ULTRASONIC SENSOR
*3 NO. 4 ENGINE ROOM WIRE - -

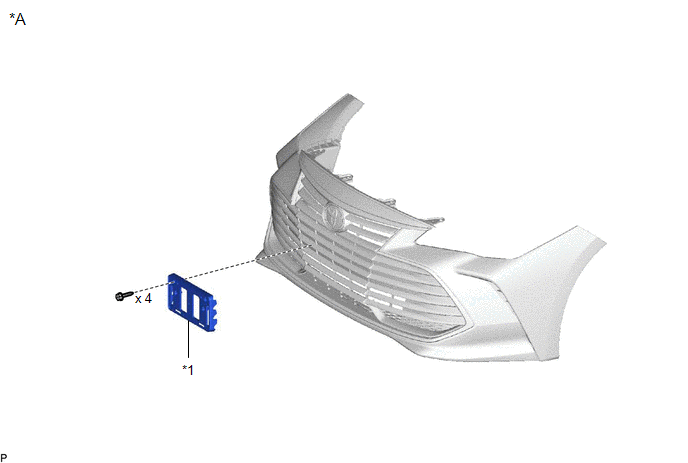

Fig 5: Front Bumper Replacement Components (5 Of 8) [04/2018 - 08/2019]
GTY840300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Bar Type Radiator Grille - -
*1 FRONT LICENSE PLATE BRACKET SUB-ASSEMBLY - -

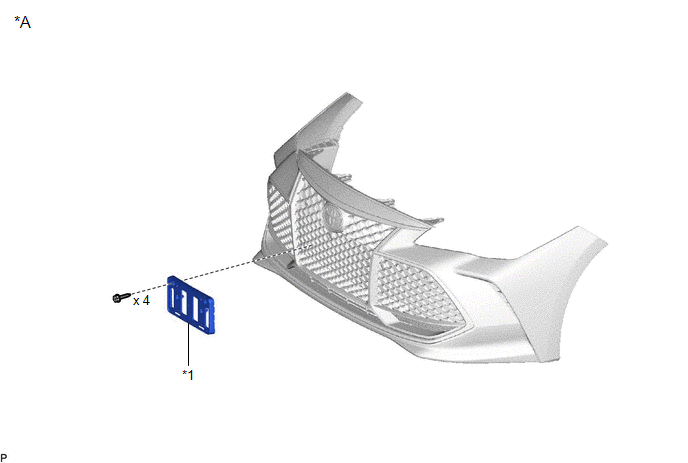

Fig 6: Front Bumper Replacement Components (6 Of 8) [04/2018 - 08/2019]
GTY851746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Mesh Type Radiator Grille - -
*1 FRONT LICENSE PLATE BRACKET SUB-ASSEMBLY - -

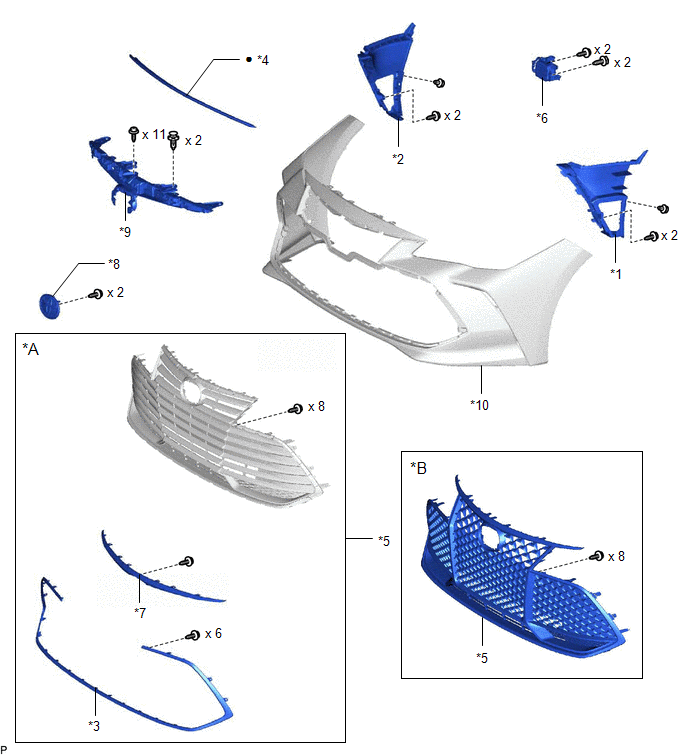

Fig 7: Front Bumper Replacement Components (7 Of 8) [04/2018 - 08/2019]
GTY855444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for Bar Type Radiator Grille *B for Mesh Type Radiator Grille
*1 AIR INTAKE DUCT LH *2 AIR INTAKE DUCT RH
*3 FRONT BUMPER MOULDING *4 HOOD TO FRONT END PANEL SEAL
*5 LOWER RADIATOR GRILLE SUB-ASSEMBLY *6 MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*7 RADIATOR GRILLE *8 RADIATOR GRILLE EMBLEM ASSEMBLY
*9 RADIATOR GRILLE SUB-ASSEMBLY *10 FRONT BUMPER COVER
• Non-reusable part - -

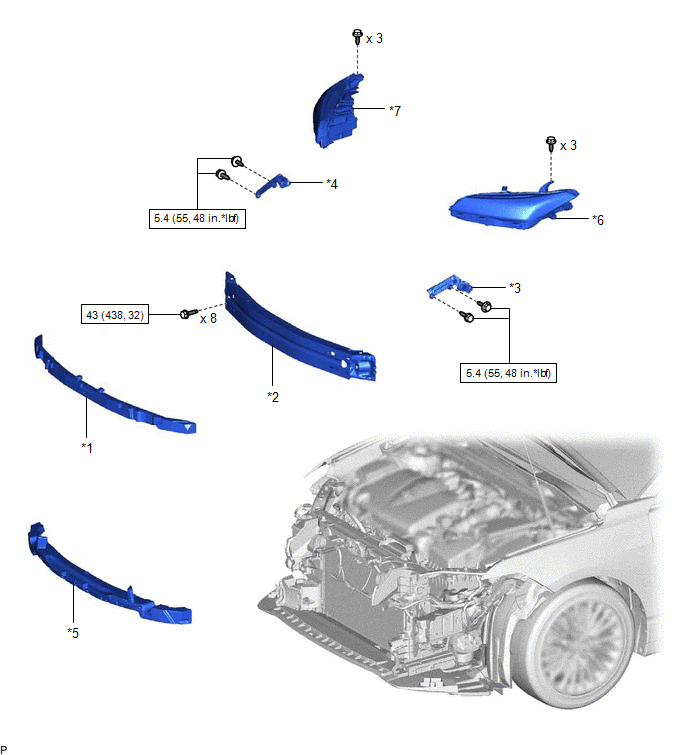

Fig 8: Front Bumper Replacement Components With Torque Specifications (8 Of 8) [04/2018 - 08/2019]
GTY861186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT BUMPER ENERGY ABSORBER *2 FRONT BUMPER REINFORCEMENT
*3 FRONT BUMPER SIDE RETAINER LH *4 FRONT BUMPER SIDE RETAINER RH
*5 NO. 2 FRONT BUMPER ENERGY ABSORBER *6 HEADLIGHT ASSEMBLY LH
*7 HEADLIGHT ASSEMBLY RH - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
