Removal [04/2018 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR LIGHT ASSEMBLY

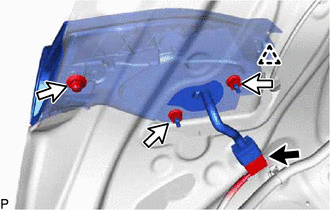

    1. Disconnect the connector.
      GTY924601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 nuts.
    3. Disengage the clip to remove the rear light assembly.
