Installation [04/2018 - ]: Procedure

INSTALL TRIP SWITCH

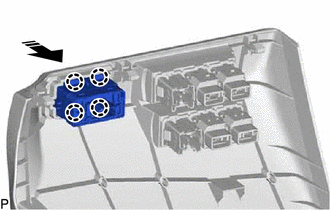

Engage the 4 claws as shown in the illustration to install the trip switch.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 45
CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 46
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 47
INSTALL INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 48
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
Refer to PROCEDURE - Step 1
INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 31 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 29 [08/2020 - ]
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 32 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 30 [08/2020 - ]
