Components [04/2018 - ]

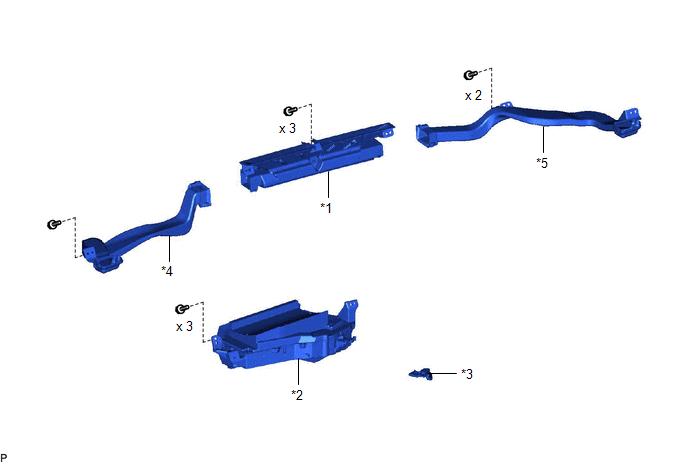

Fig 1: Headup Display Replacement Components
GTY871436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DEFROSTER NOZZLE ASSEMBLY *2 METER MIRROR SUB-ASSEMBLY
*3 METER MIRROR WIRE *4 NO. 1 SIDE DEFROSTER NOZZLE DUCT
*5 NO. 2 SIDE DEFROSTER NOZZLE DUCT - -
