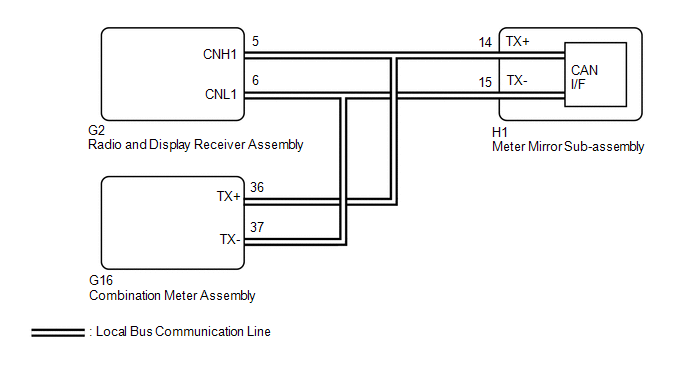

DTC B1321-87: Lost Communication with EMV Missing Message [04/2018 - ]: Wiring Diagram

  1. GTY884997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
