Removal [04/2018 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [04/2018 - ]

  2. REMOVE TELEVISION CAMERA ASSEMBLY

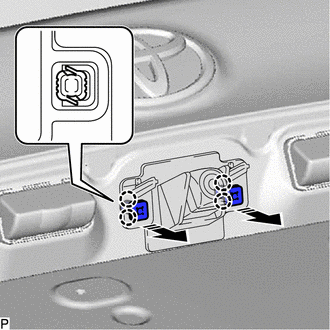

    1. Disengage the 4 claws to remove the 2 grommets as shown in the illustration.
      GTY937517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

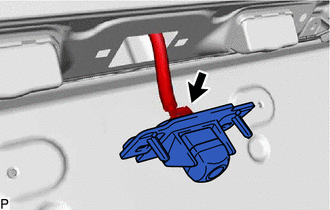

    2. Disconnect the connector to remove the television camera assembly.
      GTY919697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
