Home >> Toyota >> 2021 >> Avalon TRD >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Can Communication System - Diagnostic Codes & Circuit Tests (Except Hybrid) (1 Of 2) >> CAN COMMUNICATION SYSTEM (for Gasoline Model) >> Circuit Tests >> Open in Bus 2 Main Bus Line [04/2018 - 08/2020] >> Wiring Diagram

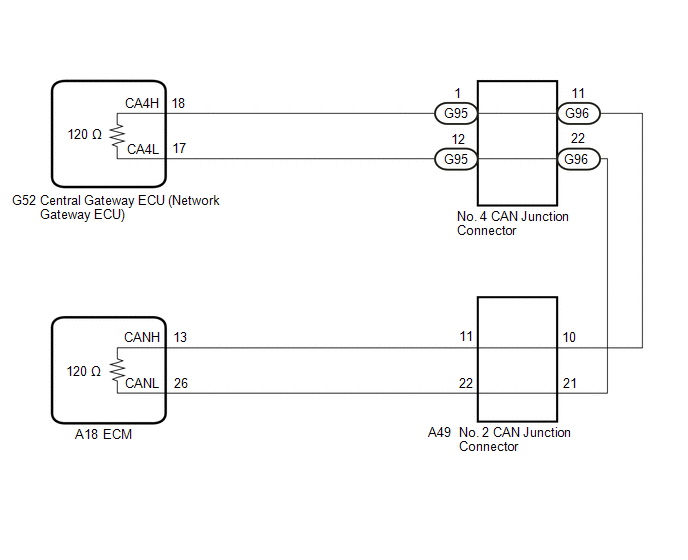

Open in Bus 2 Main Bus Line [04/2018 - 08/2020]: Wiring Diagram

GTY939248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
