Home >> Toyota >> 2021 >> 4Runner Trail, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Exterior Panels / Trim - Service Information >> Side Moulding >> Components [08/2015 - ]

Components [08/2015 - ]

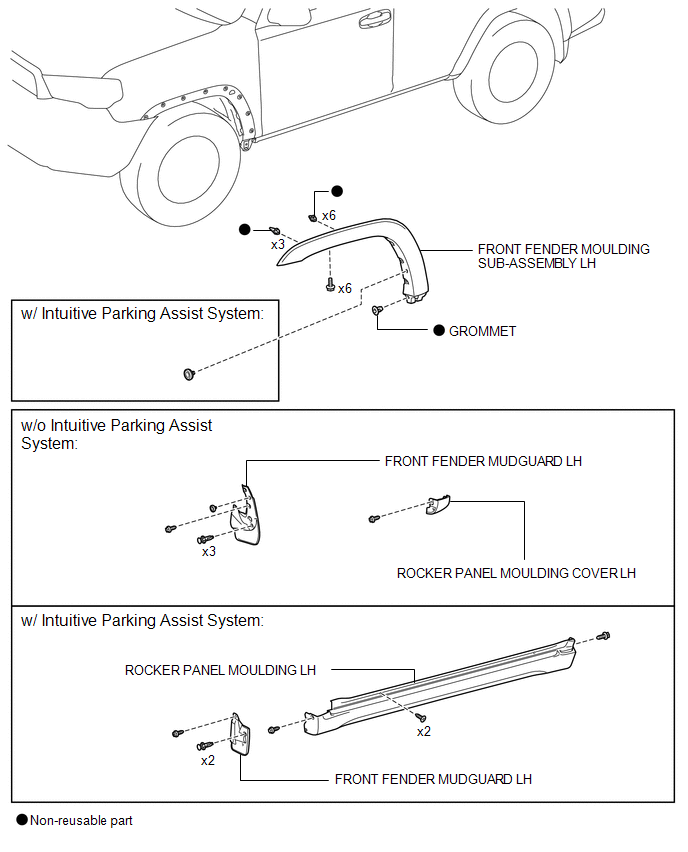

Fig 1: Side Moulding Replacement Components (1 Of 5)
GTY707672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Side Moulding Replacement Components (2 Of 5)
GTY729260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

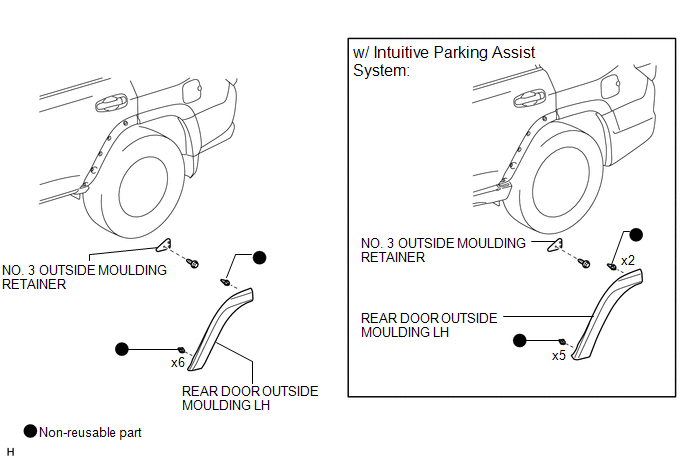

Fig 3: Side Moulding Replacement Components (3 Of 5)
GTY710875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

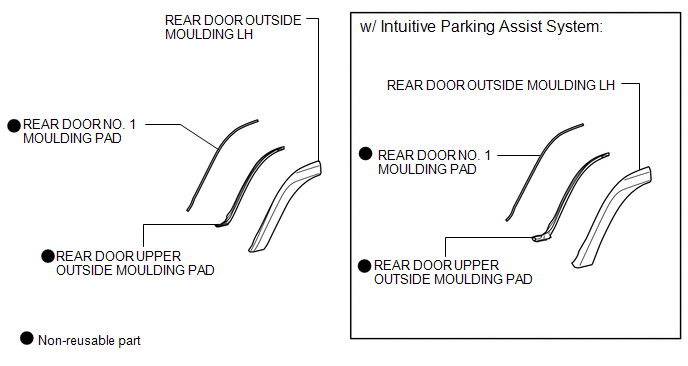

Fig 4: Side Moulding Replacement Components (4 Of 5)
GTY727835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Side Moulding Replacement Components (5 Of 5)
GTY723804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
