Components [08/2015 - ]

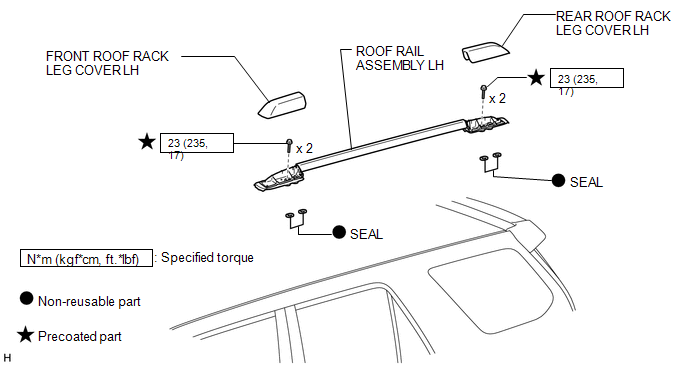

Fig 1: Roof Rack Replacement Components With Torque Specifications (1 Of 2)
GTY690891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

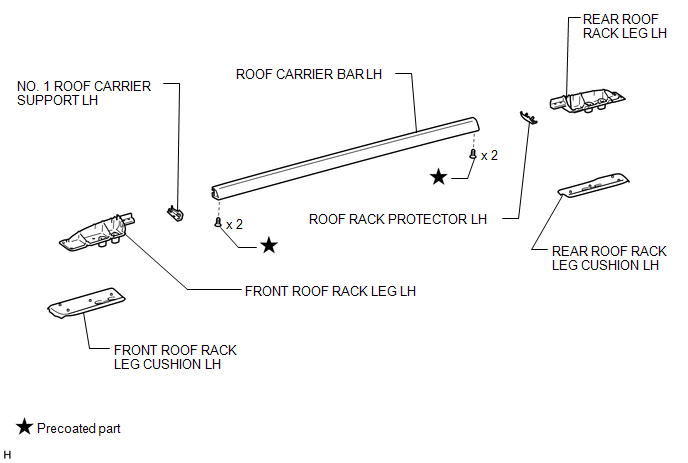

Fig 2: Roof Rack Replacement Components (2 Of 2)
GTY708611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
