Components [08/2015 - 08/2021]

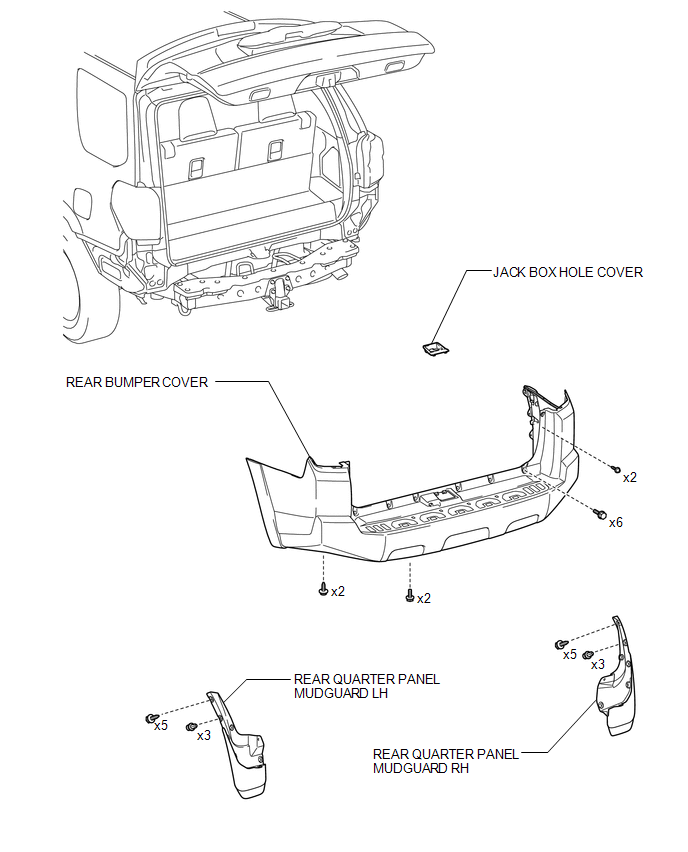

Fig 1: Rear Bumper Cover Replacement Components (1 Of 3)
GTY740303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

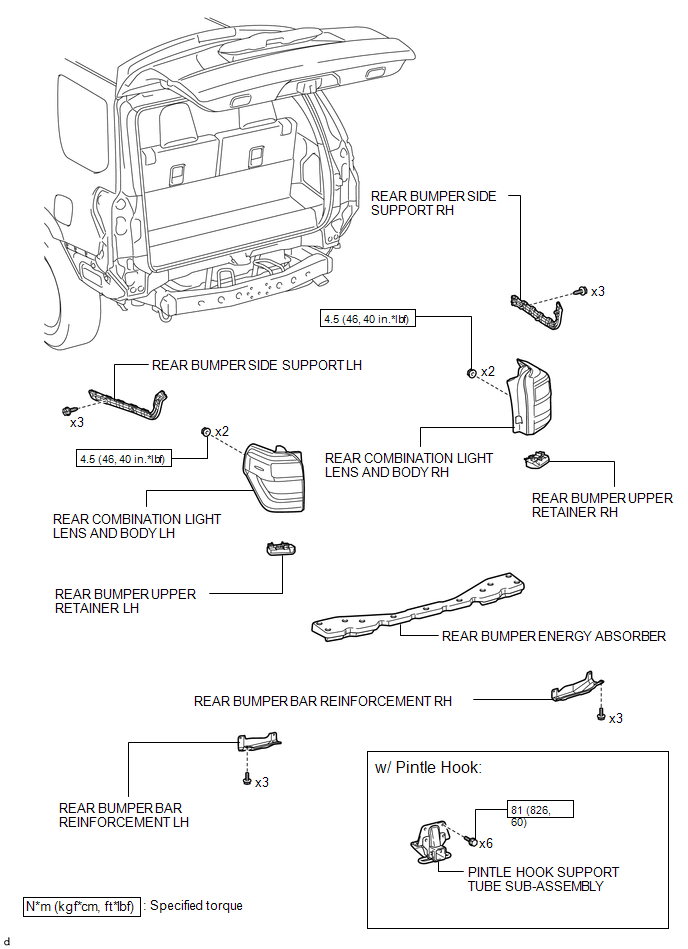

Fig 2: Rear Bumper Cover Replacement Components With Torque Specifications (2 Of 3)
GTY707661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

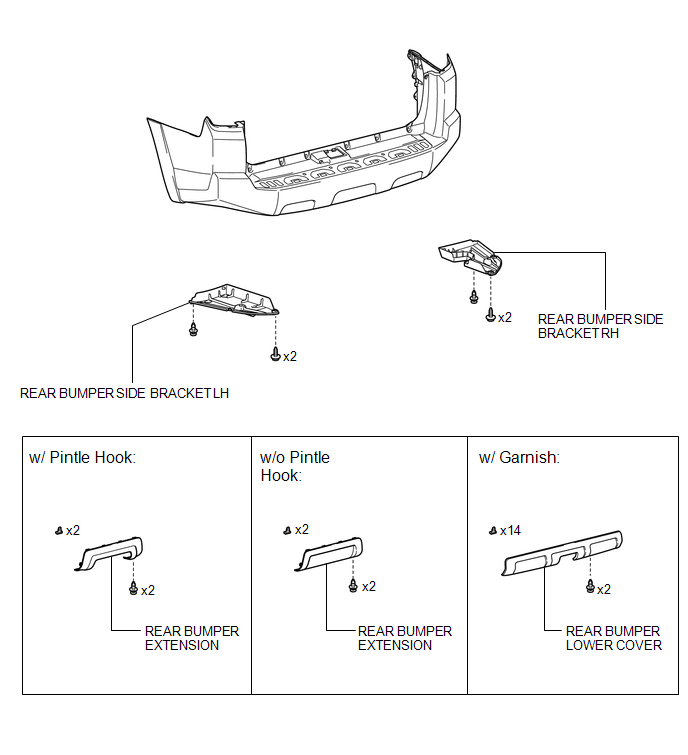

Fig 3: Rear Bumper Cover Replacement Components (3 Of 3)
GTY443218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
