Home >> Toyota >> 2021 >> 4Runner Trail, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Exterior Panels / Trim - Service Information >> Front Bumper >> Components [08/2019 - 08/2020]

Components [08/2019 - 08/2020]

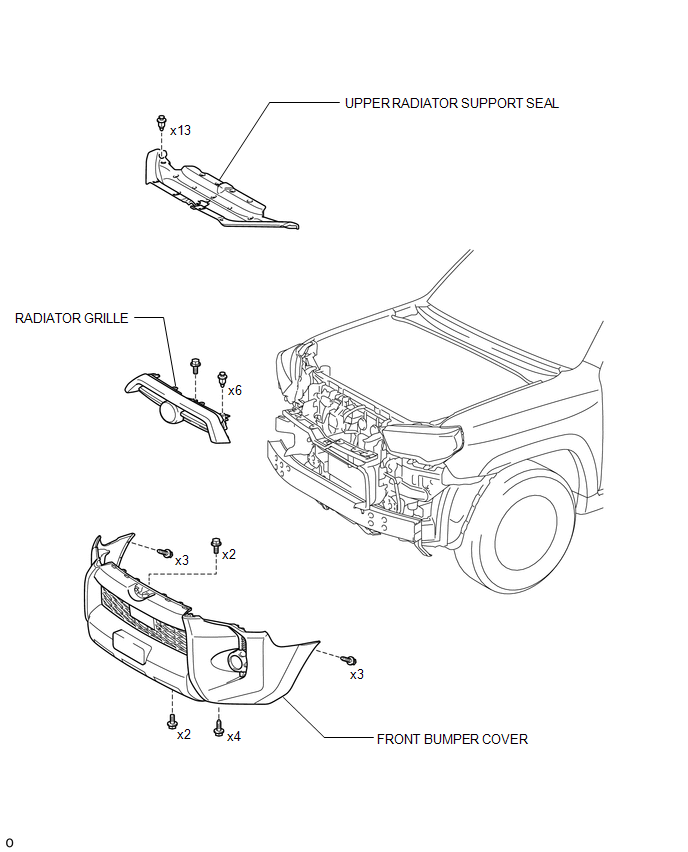

Fig 1: Front Bumper Replacement Components (1 Of 3) [08/2019 - 08/2020]
GTY894851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

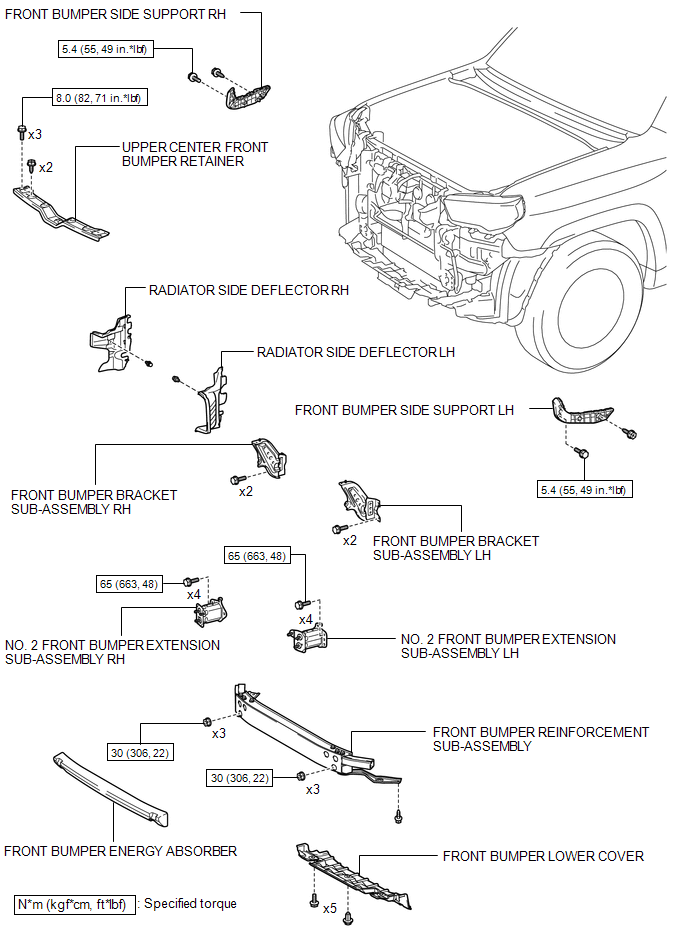

Fig 2: Front Bumper Replacement Components With Torque Specifications (2 Of 3) [08/2019 - 08/2020]
GTY844969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

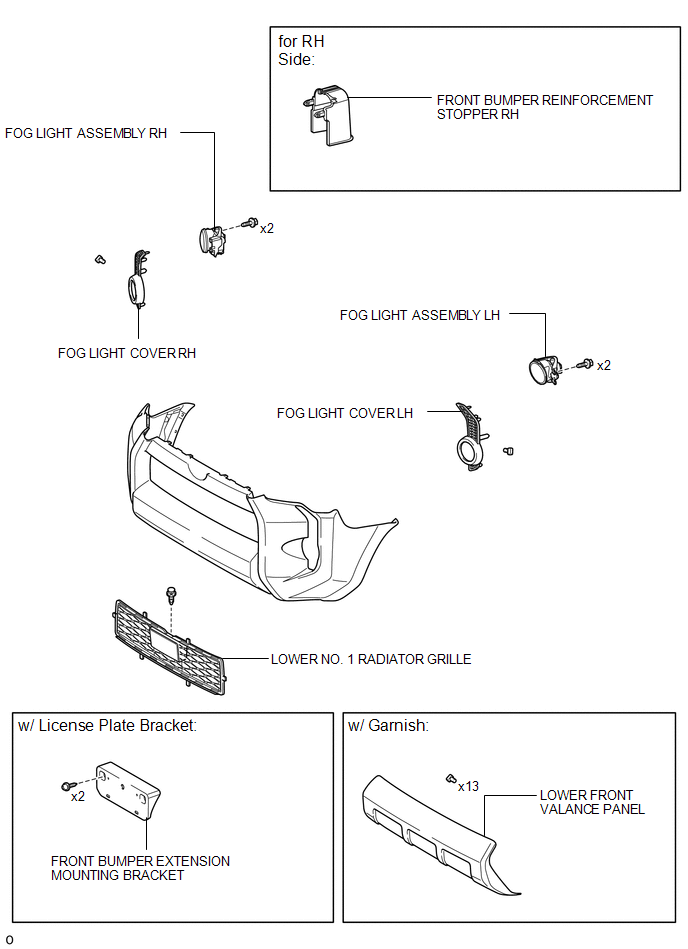

Fig 3: Front Bumper Replacement Components (3 Of 3) [08/2019 - 08/2020]
GTY911294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
