Installation [08/2015 - ]: Procedure

  1. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

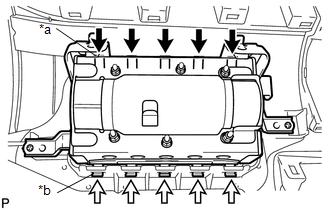

    1. Attach the 5 hooks (A).
      GTY215991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Hook A
      *b Hook B
    2. Attach the 5 hooks (B) to install the instrument panel passenger airbag.
    3. Install the 2 screws.
  2. INSTALL NO. 2 INSTRUMENT PANEL WIRE
    1. Connect the 2 connectors to install the wire.
      NOTE:

      When handling the airbag connector, take care not to damage the airbag wire harness.

    2. Attach the clamp.
  3. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
    1. Install the instrument panel sub-assembly (Refer to INSTALLATION [08/2015 - 08/2019] , or refer to INSTALLATION [08/2019 - 08/2022] , or refer to INSTALLATION [08/2022 - ] ).
