Home >> Toyota >> 2021 >> 4Runner TRD Pro >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Stability Control System (For Hydraulic Brake Booster) - Diagnostic Codes (43, C0226-C1422) >> VEHICLE STABILITY CONTROL SYSTEM (for Hydraulic Brake Booster) >> DTC C0226: SFR Solenoid Circuit; DTC C0236: SFL Solenoid Circuit; DTC C0246: SRR Solenoid Circuit; DTC C0256: SRL Solenoid Circuit; DTC C1225: SM Solenoid Circuit; DTC C1226: SA2 Solenoid Circuit; DTC C1227: SA3 Solenoid Circuit; DTC C1228: STR Solenoid Circuit [08/2015 - 08/2019] >> Wiring Diagram

DTC C0226: SFR Solenoid Circuit; DTC C0236: SFL Solenoid Circuit; DTC C0246: SRR Solenoid Circuit; DTC C0256: SRL Solenoid Circuit; DTC C1225: SM Solenoid Circuit; DTC C1226: SA2 Solenoid Circuit; DTC C1227: SA3 Solenoid Circuit; DTC C1228: STR Solenoid Circuit [08/2015 - 08/2019]: Wiring Diagram

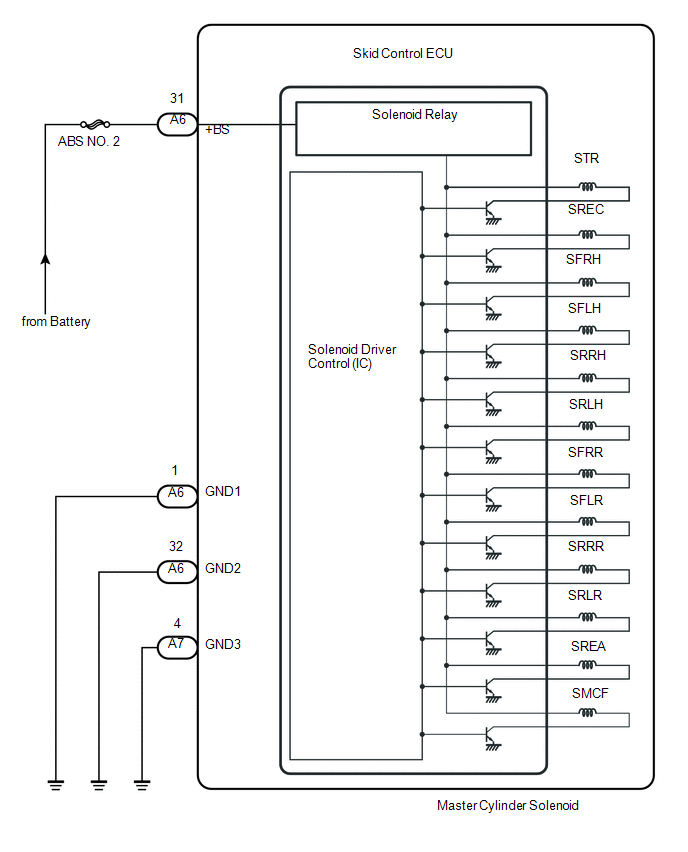

GTY230052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
