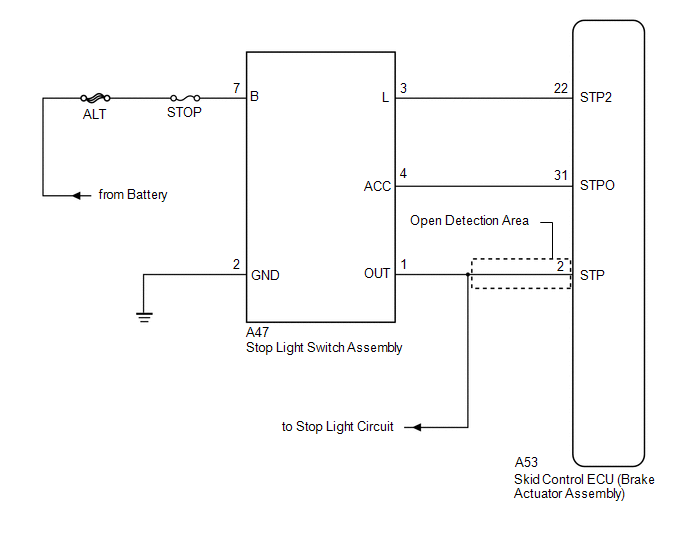

DTC C1425: Open in Stop Light Switch Circuit [08/2015 - 08/2019]: Wiring Diagram

GTY707711

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
