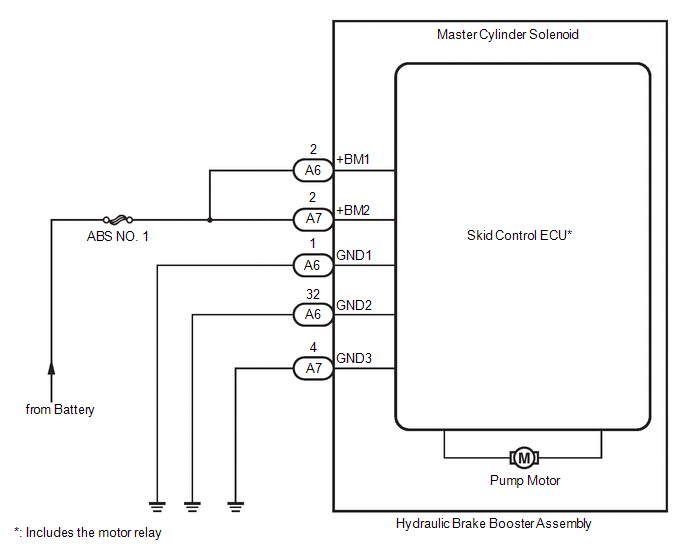

DTC C1253: Pump Motor Relay [08/2015 - ]: Wiring Diagram

GTY1099942

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
