Removal [08/2015 - ]: Procedure

  1. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 2

  2. REMOVE SECURITY INDICATOR LIGHT ASSEMBLY

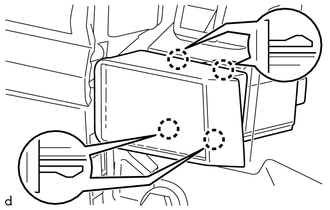

    1. Pull the security indicator light assembly to detach the 4 claws on the backside of the security indicator light assembly.
      GTY455198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the security indicator light assembly.
