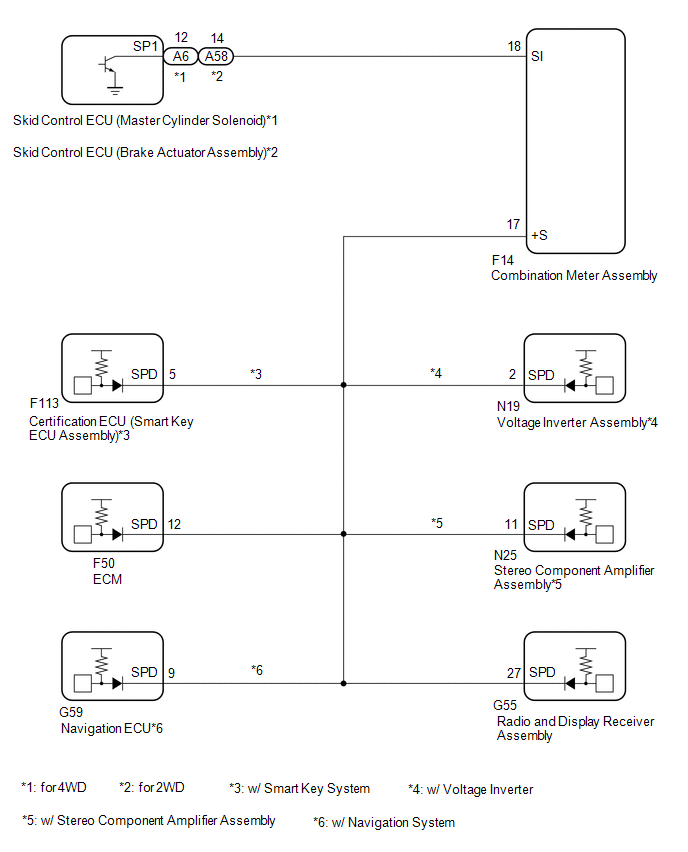

Speed Signal Circuit [08/2019 - 08/2022]: Wiring Diagram

GTY943151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
