Inspection [08/2015 - ]: Procedure

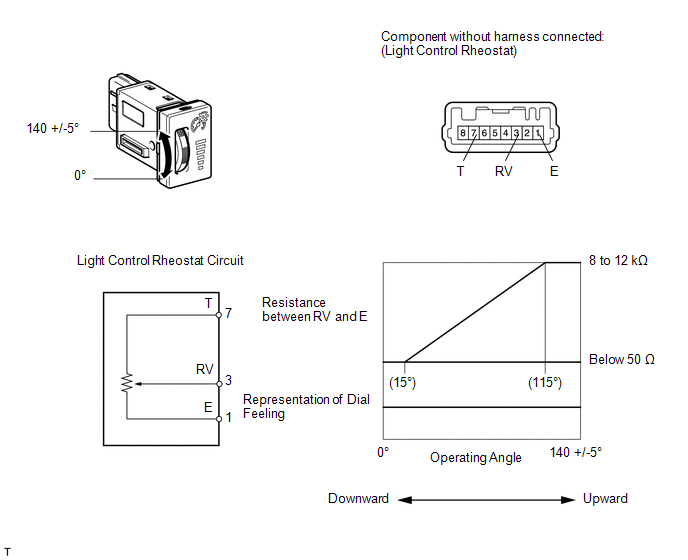

- INSPECT LIGHT CONTROL RHEOSTAT (w/o TAIL Cancel Switch)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 7 (T) - 1 (E) Always 8 to 12 kΩ 3 (RV) - 1 (E) Light control rheostat fully turned upward → fully turned downward 8 to 12 kΩ → Below 50 Ω If the result is not as specified, replace the rheostat.
- Measure the resistance according to the value(s) in the table below.

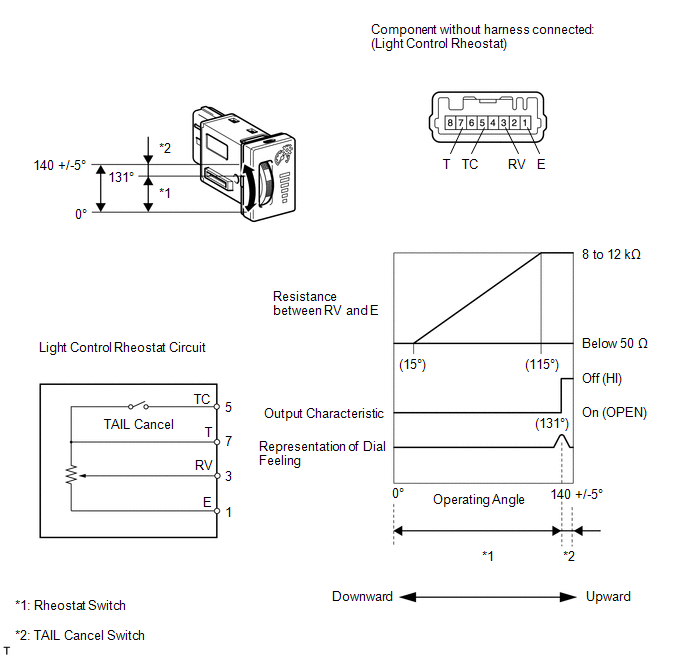

- INSPECT LIGHT CONTROL RHEOSTAT (w/ TAIL Cancel Switch)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 7 (T) - 1 (E) Always 8 to 12 kΩ 5 (TC) - 7 (T) TAIL cancel switch off → on Below 50 Ω → 8 to 12 kΩ 3 (RV) - 1 (E) Light control rheostat fully turned upward → fully turned downward 8 to 12 kΩ → Below 50 Ω If the result is not as specified, replace the rheostat.
- Measure the resistance according to the value(s) in the table below.
