Disassembly [08/2015 - ]: Procedure

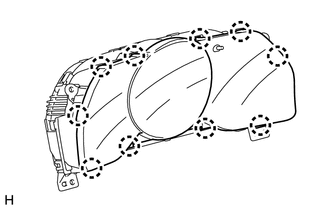

  1. REMOVE COMBINATION METER GLASS
    1. Detach the 10 claws and remove the meter glass.
      GTY214418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

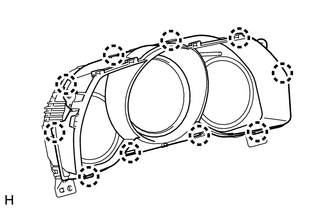

  2. REMOVE NO. 1 COMBINATION METER COVER
    1. Detach the 10 claws and remove the cover.
      GTY222686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
