Removal [08/2015 - 08/2019]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] ).

  2. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 2

  4. REMOVE HEATER CONTROL ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKETS (for Radio and Display Type)

    Refer to PROCEDURE - Step 4

  6. REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKETS (for Navigation Receiver Type)

    Refer to PROCEDURE - Step 5

  7. REMOVE ACCESSORY METER ASSEMBLY

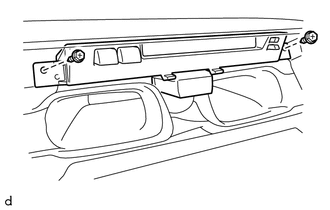

    1. Remove the 2 screws.
      GTY445962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

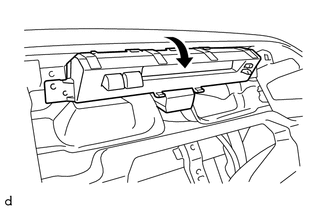

    2. Disconnect the connector to remove the accessory meter assembly as shown in the illustration.
      GTY445961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
