Reassembly [08/2015 - 08/2019]: Procedure

INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY
1. w/o Sliding Roof:
  Install the No. 2 antenna cord sub-assembly (Refer to PROCEDURE - Step 3 ).
2. w/ Sliding Roof:
  Install the No. 2 antenna cord sub-assembly (Refer to PROCEDURE - Step 2 ).

INSTALL NO. 1 ROOF WIRE

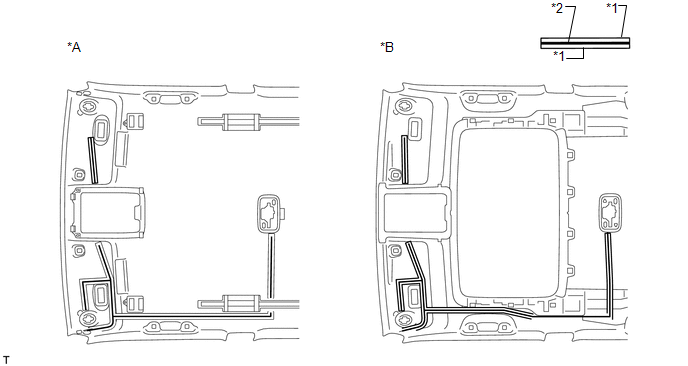

Apply butyl tape to the roof headlining so that the tape is aligned with the wire harness marking as shown in the illustration.

HINT:

Use butyl tape that has a width of 10 mm (0.394 in.).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*A	w/o Sliding Roof	*B	w/ Sliding Roof
*1	Wire Harness Marking	*2	Butyl Tape

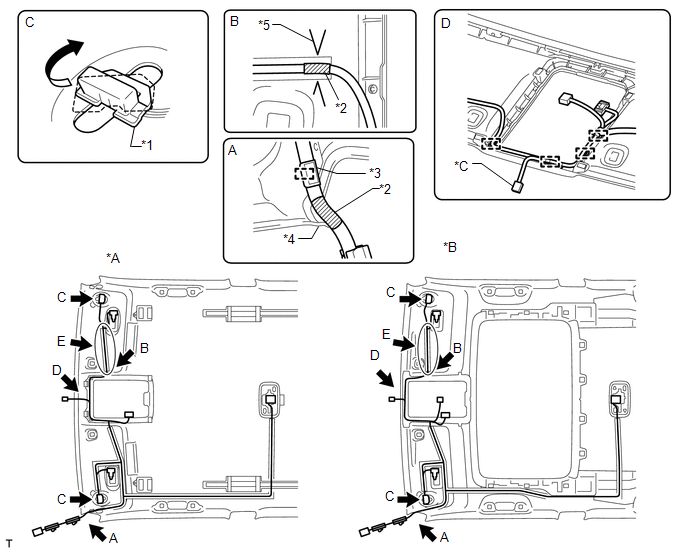

Align the marking tape on the No. 1 roof wire with the roof tongue of the roof headlining as shown in the part of the illustration labeled A and attach the wire to the hook.
Align the marking tape on the No. 1 roof wire with the V mark on the roof headlining as shown in the part of the illustration labeled B and attach the wire to the roof headlining to install it.
HINT:
- For the area in the illustration labeled E, attach the No. 1 roof wire so that its marked surface contacts the roof headlining.
- Be sure to securely attach the roof wire so that it is not twisted.
Attach each clamp.

Turn the visor connectors approximately 90° clockwise to install them to the roof headlining.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*A	w/o Sliding Roof	*B	w/ Sliding Roof
*C	w/ EC Mirror	-	-
*1	Visor Connector	*2	Marking Tape
*3	Hook	*4	Roof Tongue
*5	V Mark	-	-

INSTALL VANITY LIGHT ASSEMBLY
HINT:

Use the same procedure for the other vanity light.
1. Attach the 3 claws to install the vanity light.

INSTALL NO. 4 ROOF SILENCER PAD

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

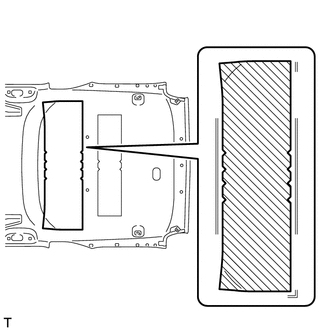

w/o Sliding Roof:
Align the No. 4 roof silencer pad with the markings on the roof headlining and install the No. 4 roof silencer pad to the position shown in the illustration using hot-melt glue or double-sided tape.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

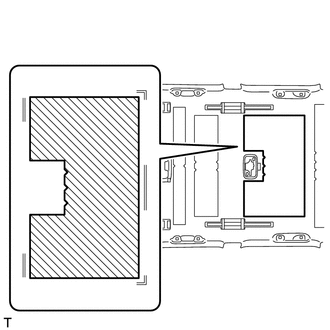

w/ Sliding Roof:

Align the No. 4 roof silencer pad with the markings on the roof headlining and install the No. 4 roof silencer pad to the position shown in the illustration using hot-melt glue or double-sided tape.

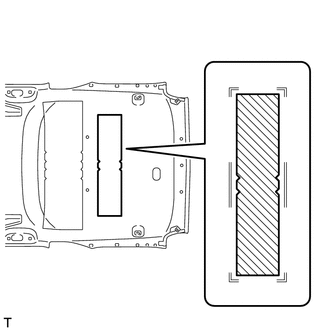

INSTALL NO. 3 ROOF SILENCER PAD (w/o Sliding Roof)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Align the No. 3 roof silencer pad with the markings on the roof headlining and install the No. 3 roof silencer pad to the position shown in the illustration using hot-melt glue or double-sided tape.

INSTALL NO. 2 ROOF SILENCER PAD

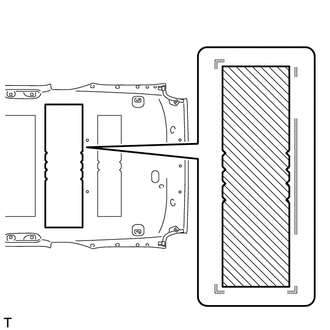

w/o Sliding Roof:
Align the 2 No. 2 roof silencer pads with the markings on the roof headlining and install the 2 No. 2 roof silencer pads to the position shown in the illustration using hot-melt glue or double-sided tape.

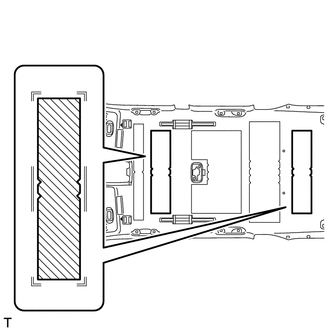

w/ Sliding Roof:

Align the No. 2 roof silencer pad with the markings on the roof headlining and install the No. 2 roof silencer pad to the position shown in the illustration using hot-melt glue or double-sided tape.

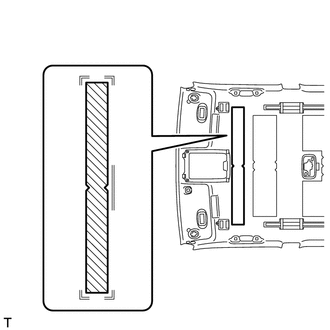

INSTALL NO. 1 ROOF SILENCER PAD (w/o Sliding Roof)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Align the No. 1 roof silencer pad with the markings on the roof headlining and install the No. 1 roof silencer pad to the position shown in the illustration using hot-melt glue or double-sided tape.
