Disassembly [08/2019 - ]: Procedure

  1. REMOVE NO. 1 ROOF SILENCER PAD (w/o Sliding Roof)
    GTY220609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the No. 1 roof silencer pad.
  2. REMOVE NO. 2 ROOF SILENCER PAD
    GTY220615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. w/o Sliding Roof:

      Remove the 2 No. 2 roof silencer pads.

    2. GTY220593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      w/ Sliding Roof:

      Remove the No. 2 roof silencer pad.

  3. REMOVE NO. 3 ROOF SILENCER PAD (w/o Sliding Roof)
    GTY220613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the No. 3 roof silencer pad.
  4. REMOVE NO. 4 ROOF SILENCER PAD
    GTY220618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. w/o Sliding Roof:

      Remove the No. 4 roof silencer pad.

    2. GTY220591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      w/ Sliding Roof:

      Remove the No. 4 roof silencer pad.

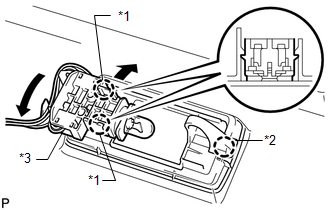

  5. REMOVE VANITY LAMP ASSEMBLY
    GTY908282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 2 claws labeled A and separate the bulb holder from the vanity light assembly as shown in the illustration.
    2. Detach the claw labeled B and remove the vanity light assembly.
      TEXT IN ILLUSTRATION

      *1 Claw A
      *2 Claw B
      *3 Bulb Holder

      HINT:

      Use the same procedure for the other vanity light assembly.

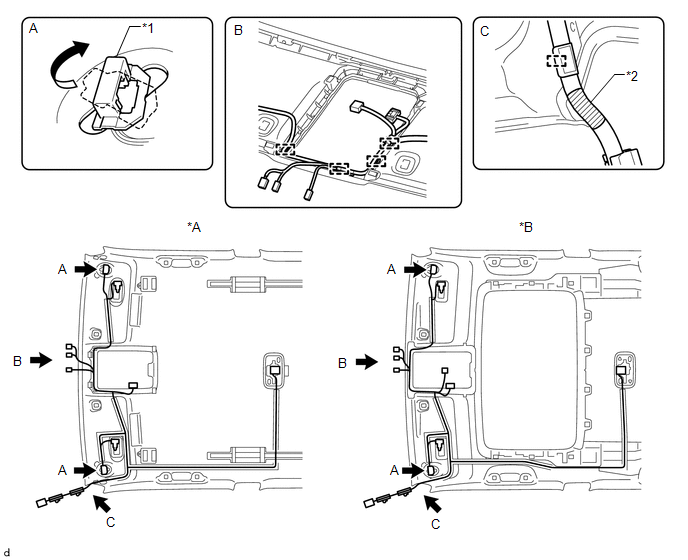

  6. REMOVE NO. 1 ROOF WIRE
    1. Turn the visor connectors approximately 90° clockwise and remove them from the roof headlining assembly.
    2. Detach each clamp and remove the tape and No. 1 roof wire.
      GTY933513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A w/o Sliding Roof *B w/ Sliding Roof
      *1 Visor Connector *2 Marking Tape
  7. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY
    1. w/o Sliding Roof:

      Remove the No. 2 antenna cord sub-assembly.

      Refer to PROCEDURE - Step 3

    2. w/ Sliding Roof:

      Remove the No. 2 antenna cord sub-assembly.

      Refer to PROCEDURE - Step 4
