Components [08/2015 - 08/2019]

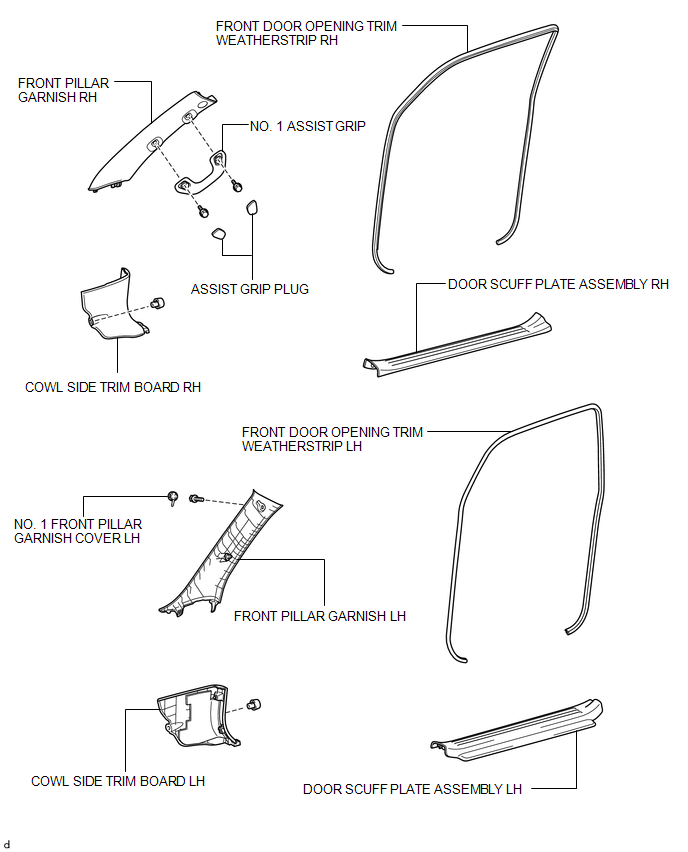

Fig 1: Roof Headlining Replacement Components (1 Of 17) [08/2015 - 08/2019]
GTY733956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

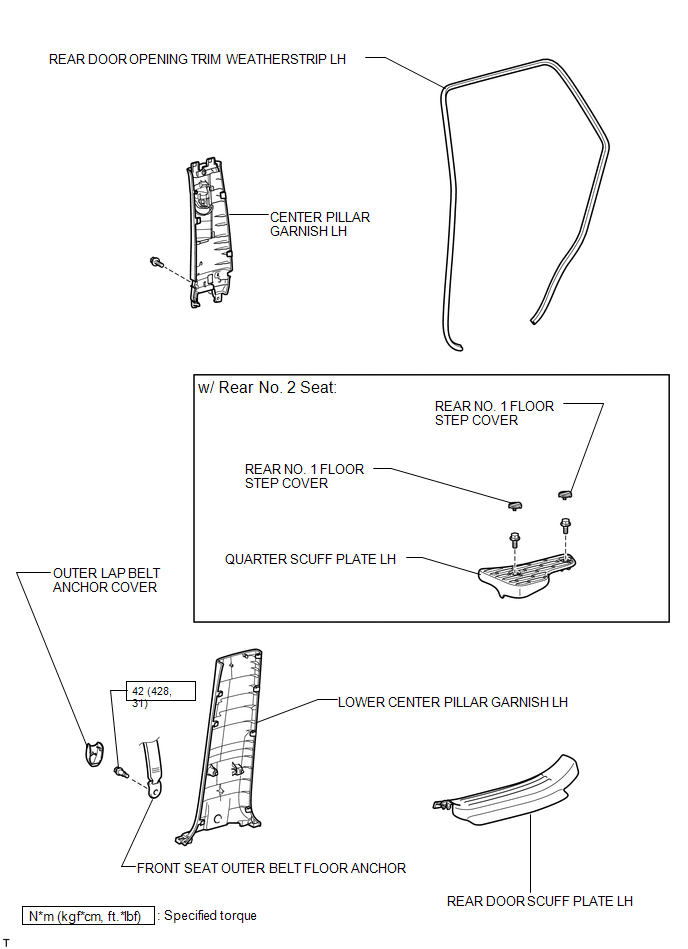

Fig 2: Roof Headlining Replacement Components With Torque Specifications (2 Of 17) [08/2015 - 08/2019]
GTY233503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

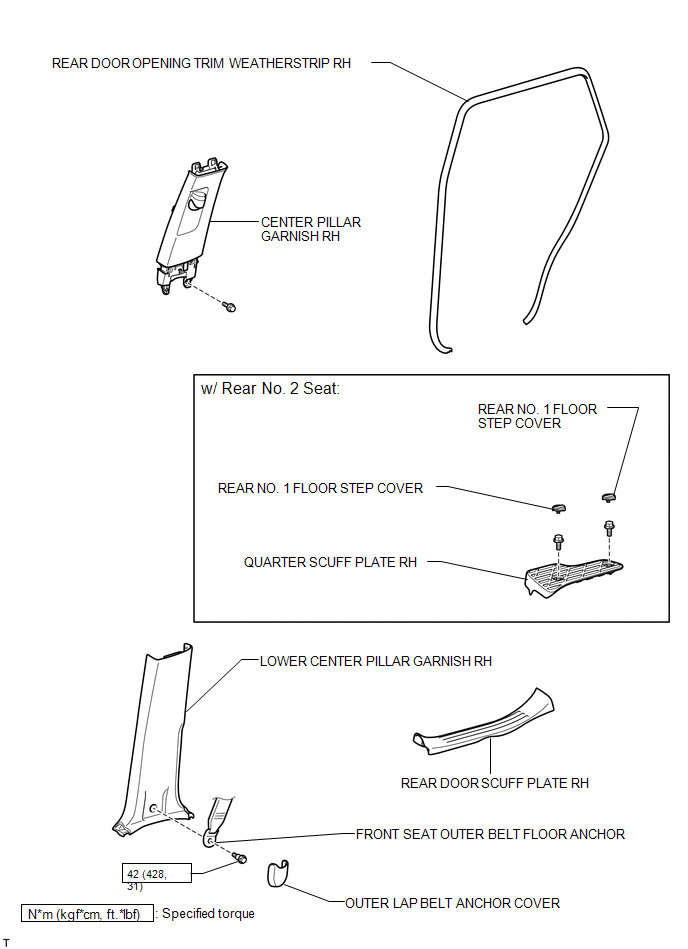

Fig 3: Roof Headlining Replacement Components With Torque Specifications (3 Of 17) [08/2015 - 08/2019]
GTY221096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

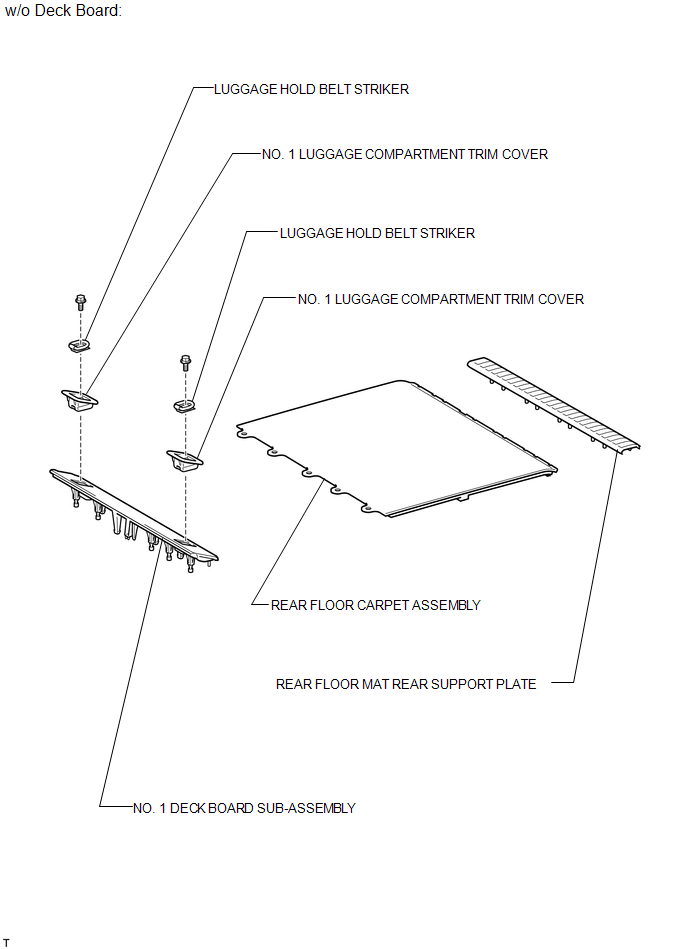

Fig 4: Roof Headlining Replacement Components (4 Of 17) [08/2015 - 08/2019]
GTY733762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

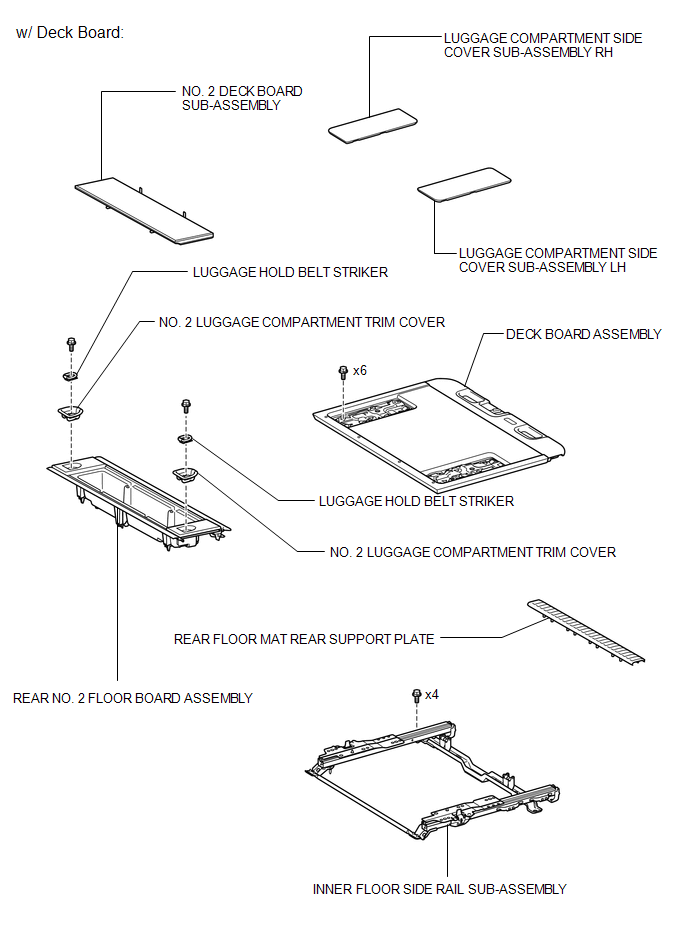

Fig 5: Roof Headlining Replacement Components (5 Of 17) [08/2015 - 08/2019]
GTY739365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

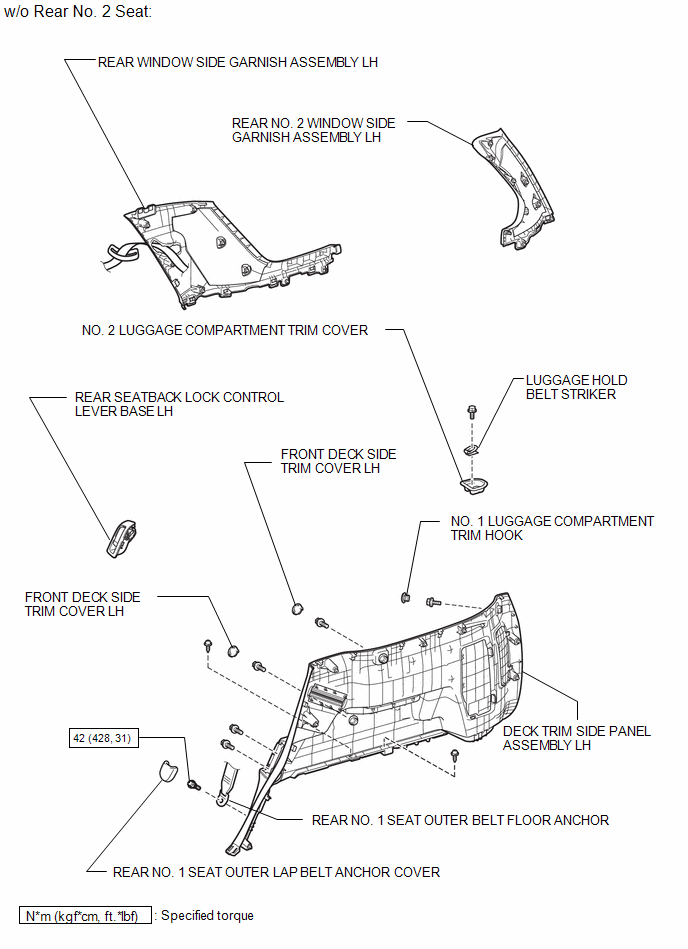

Fig 6: Roof Headlining Replacement Components With Torque Specifications (6 Of 17) [08/2015 - 08/2019]
GTY1148079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

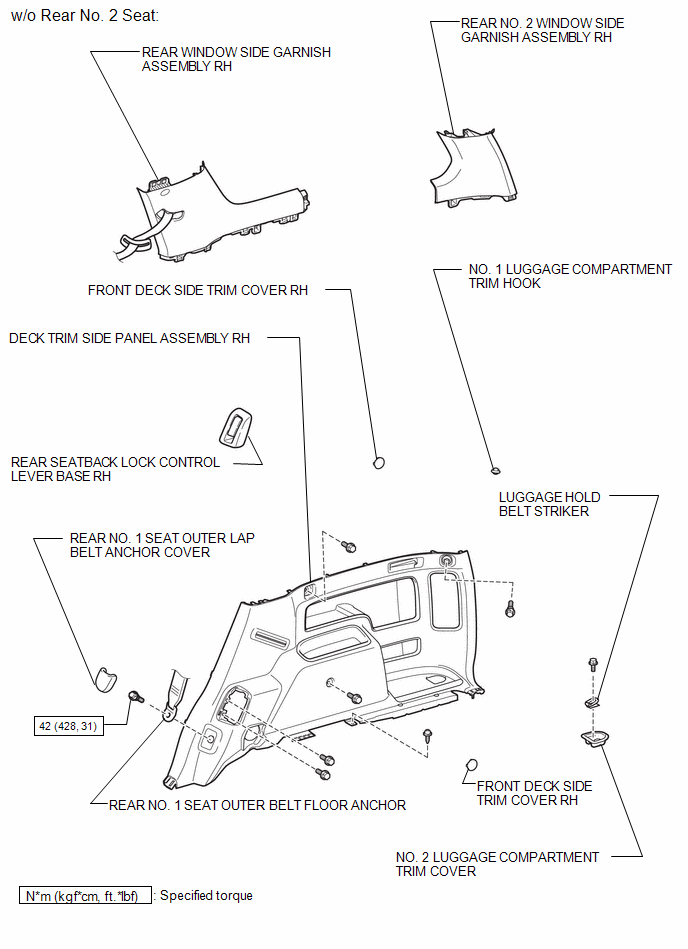

Fig 7: Roof Headlining Replacement Components With Torque Specifications (7 Of 17) [08/2015 - 08/2019]
GTY1158067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

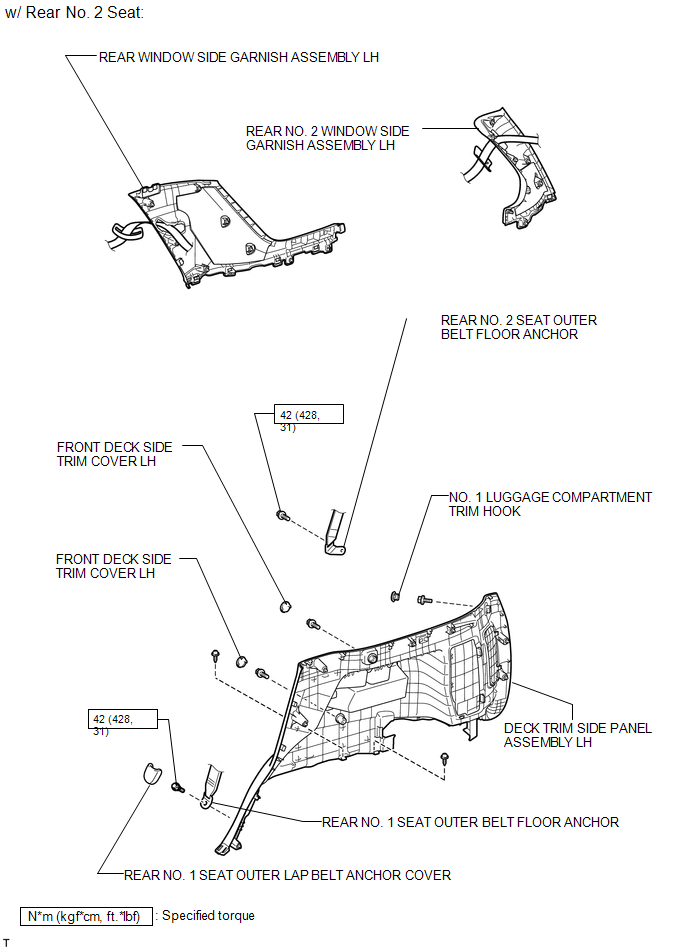

Fig 8: Roof Headlining Replacement Components With Torque Specifications (8 Of 17) [08/2015 - 08/2019]
GTY235821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

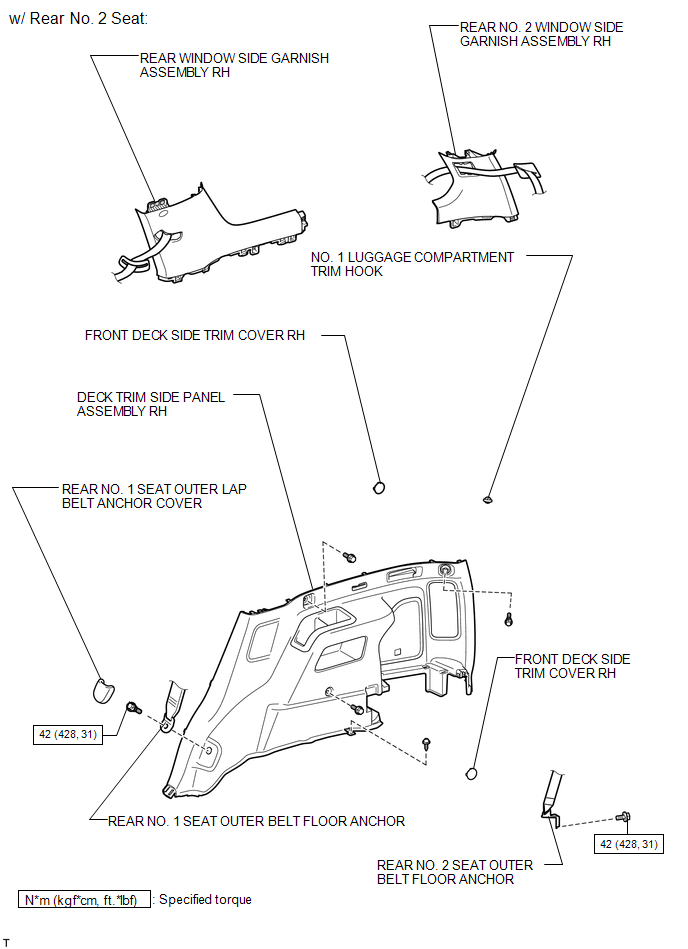

Fig 9: Roof Headlining Replacement Components With Torque Specifications (9 Of 17) [08/2015 - 08/2019]
GTY734851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

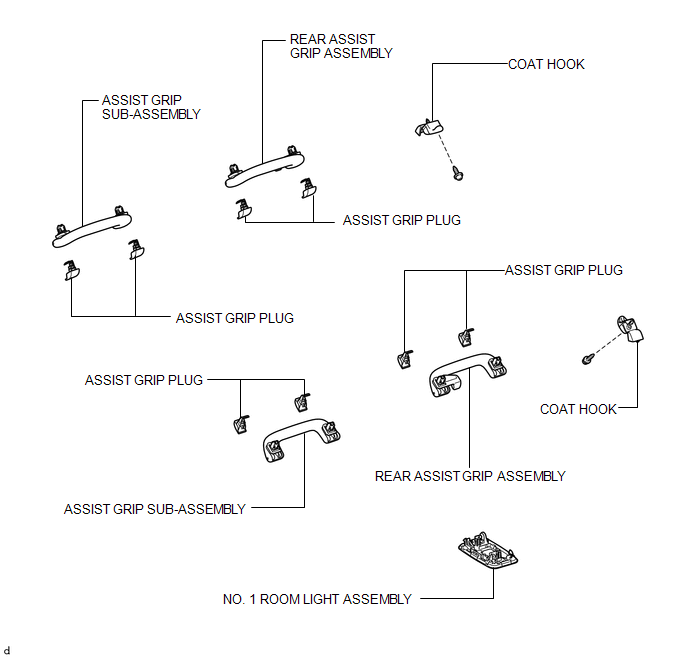

Fig 10: Roof Headlining Replacement Components (10 Of 17) [08/2015 - 08/2019]
GTY686368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

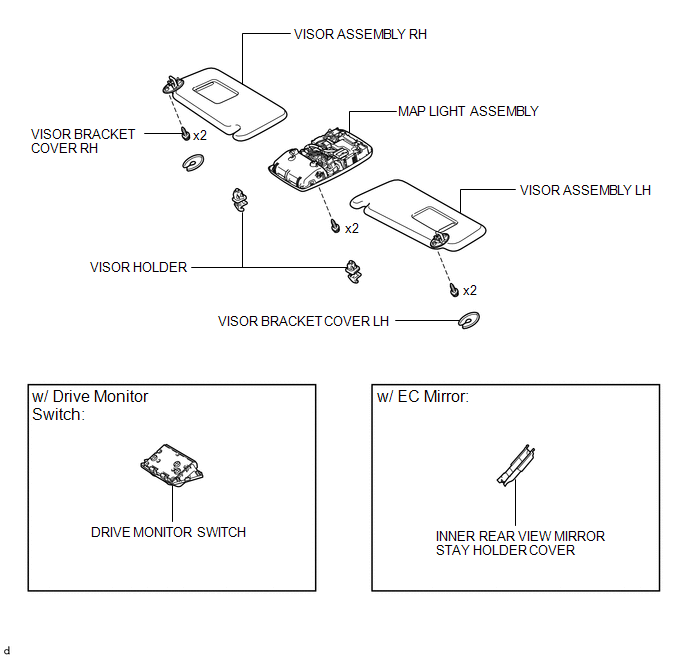

Fig 11: Roof Headlining Replacement Components (11 Of 17) [08/2015 - 08/2019]
GTY709196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

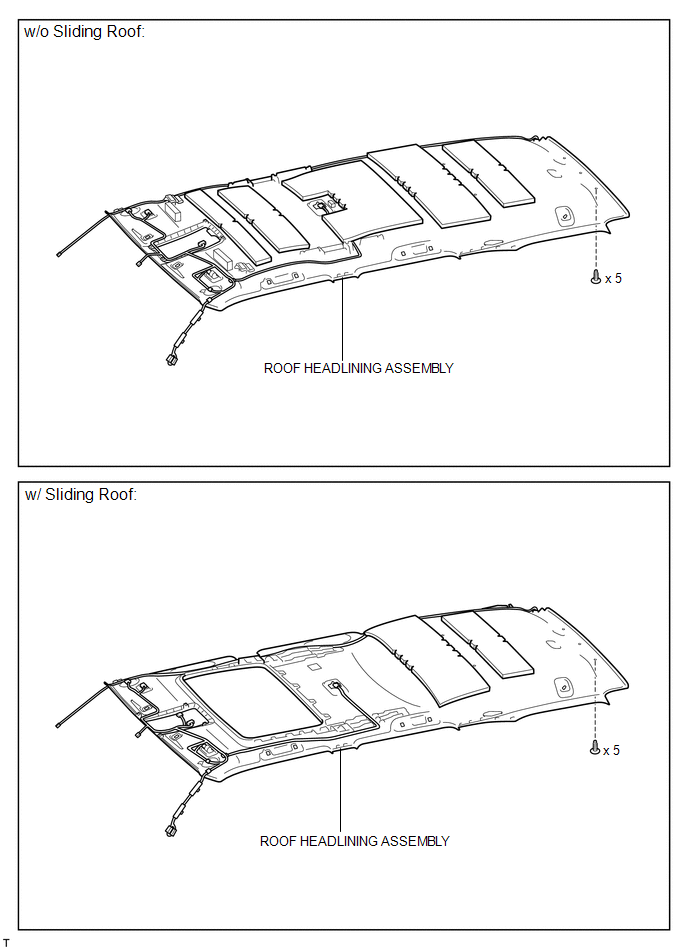

Fig 12: Roof Headlining Replacement Components (12 Of 17) [08/2015 - 08/2019]
GTY231563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

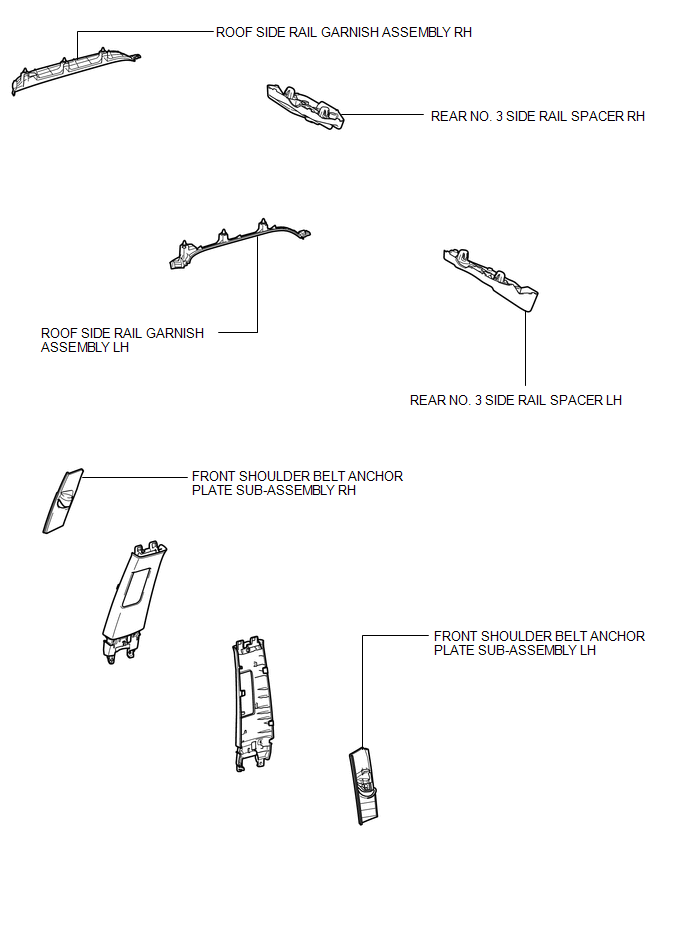

Fig 13: Roof Headlining Replacement Components (13 Of 17) [08/2015 - 08/2019]
GTY453803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

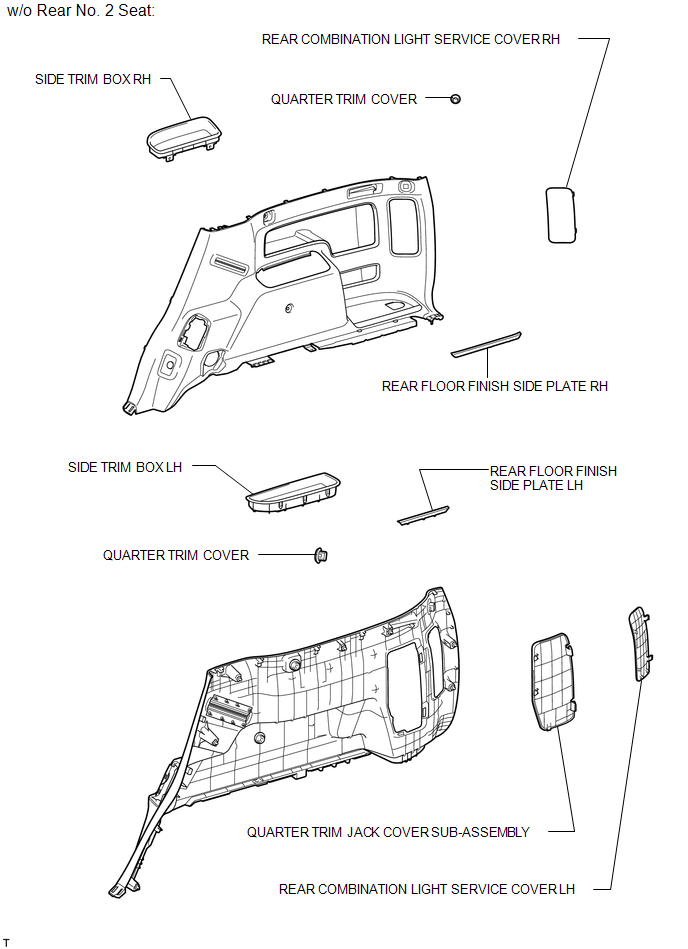

Fig 14: Roof Headlining Replacement Components (14 Of 17) [08/2015 - 08/2019]
GTY210843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

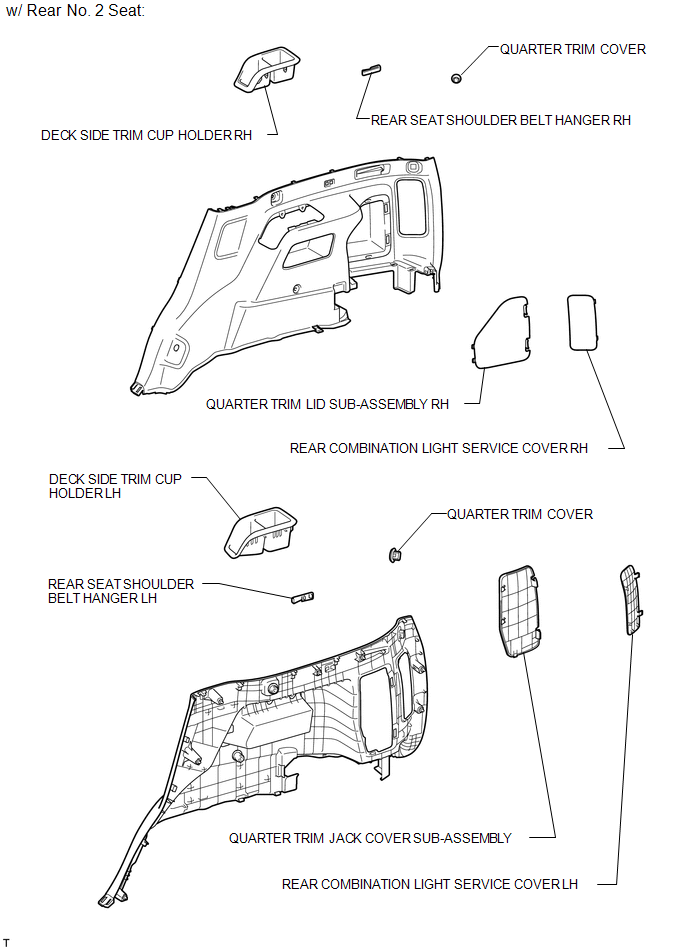

Fig 15: Roof Headlining Replacement Components (15 Of 17) [08/2015 - 08/2019]
GTY230354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

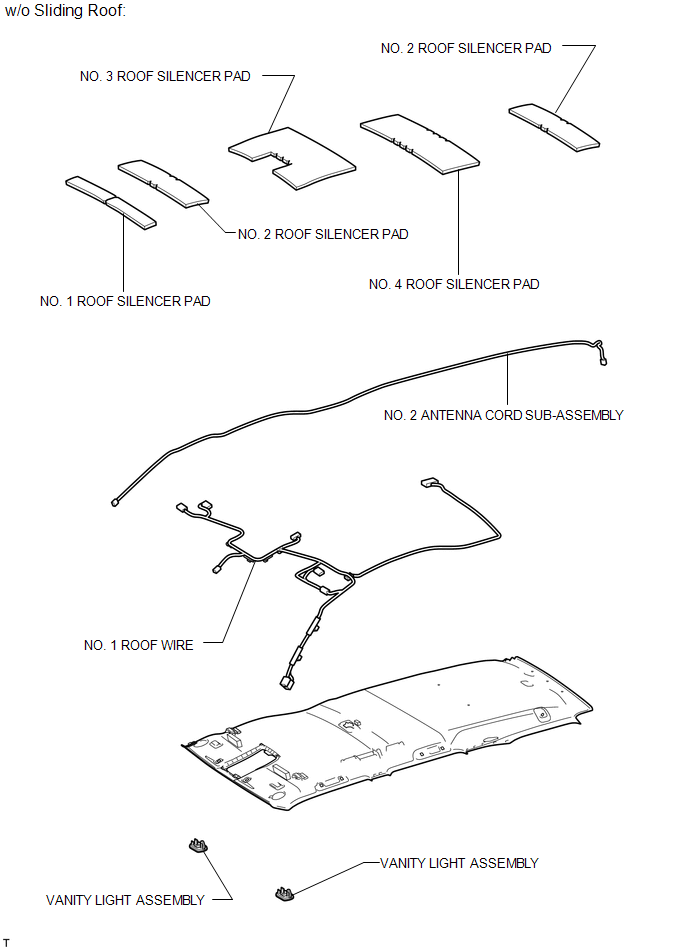

Fig 16: Roof Headlining Replacement Components (16 Of 17) [08/2015 - 08/2019]
GTY230088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

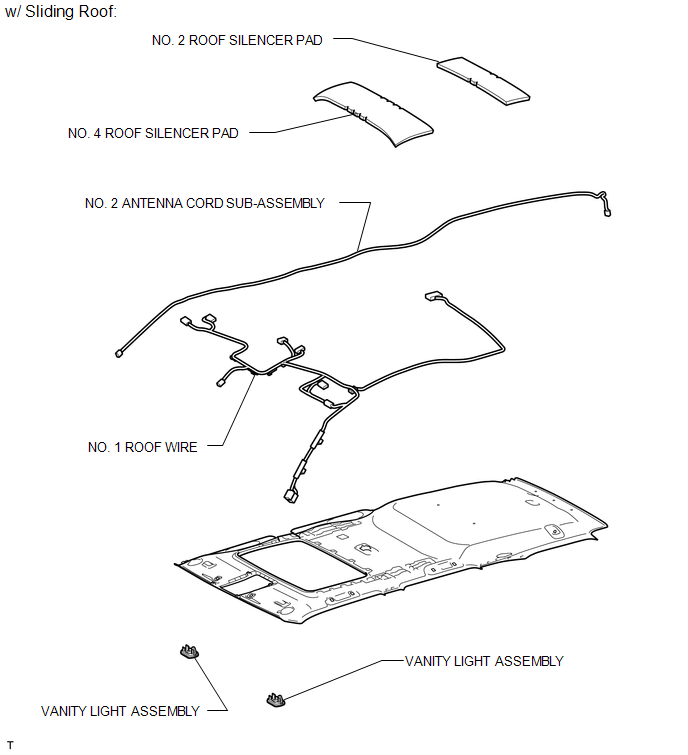

Fig 17: Roof Headlining Replacement Components (17 Of 17) [08/2015 - 08/2019]
GTY214000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
