Components [08/2019 - 08/2022]

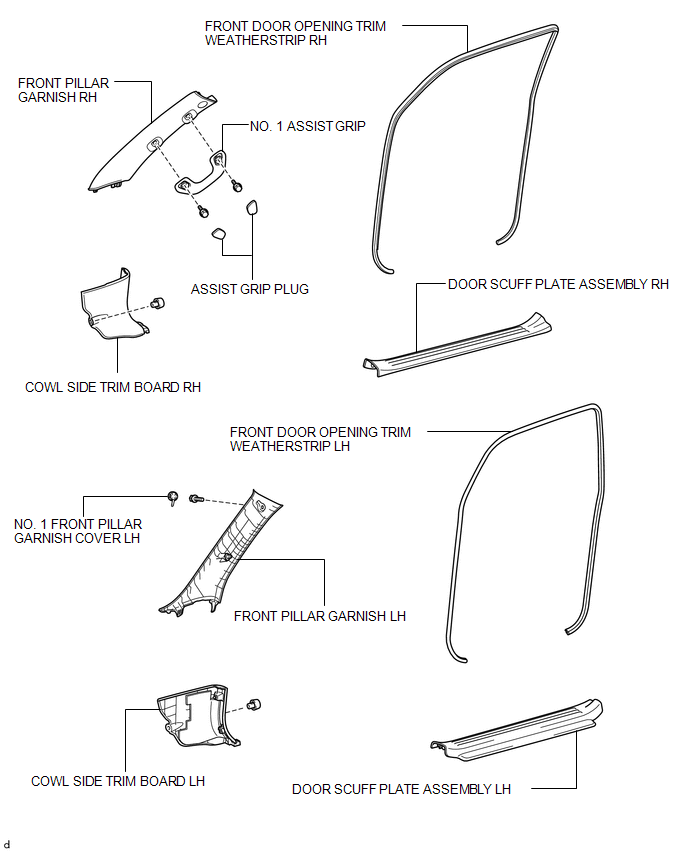

Fig 1: Instrument Panel Safety Pad Components (1 Of 7) [08/2019 - 08/2022]
GTY894413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

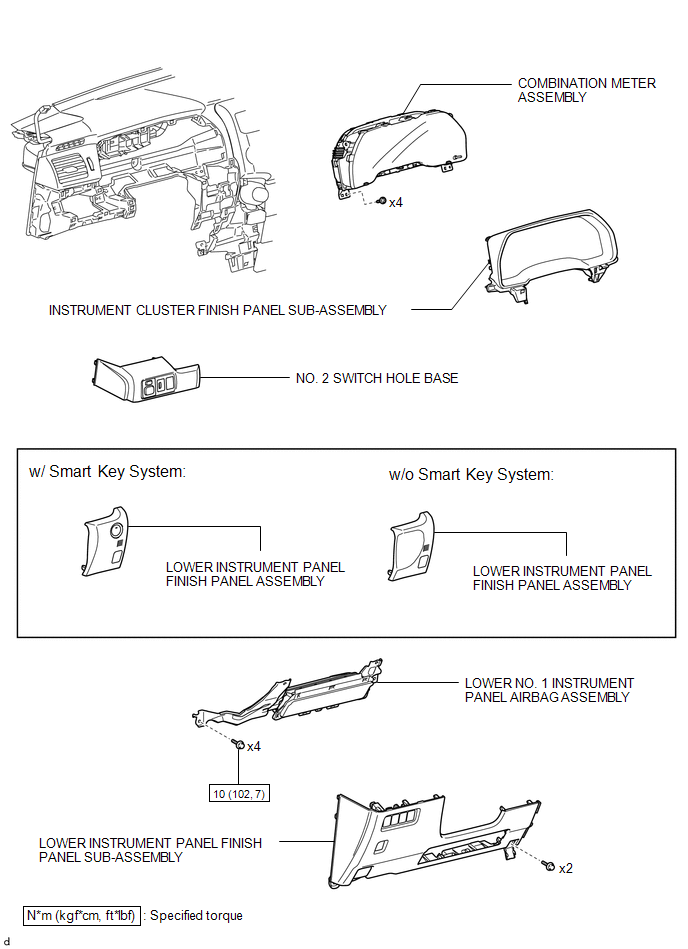

Fig 2: Instrument Panel Safety Pad Components With Torque Specifications (2 Of 7) [08/2019 - 08/2022]
GTY899836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

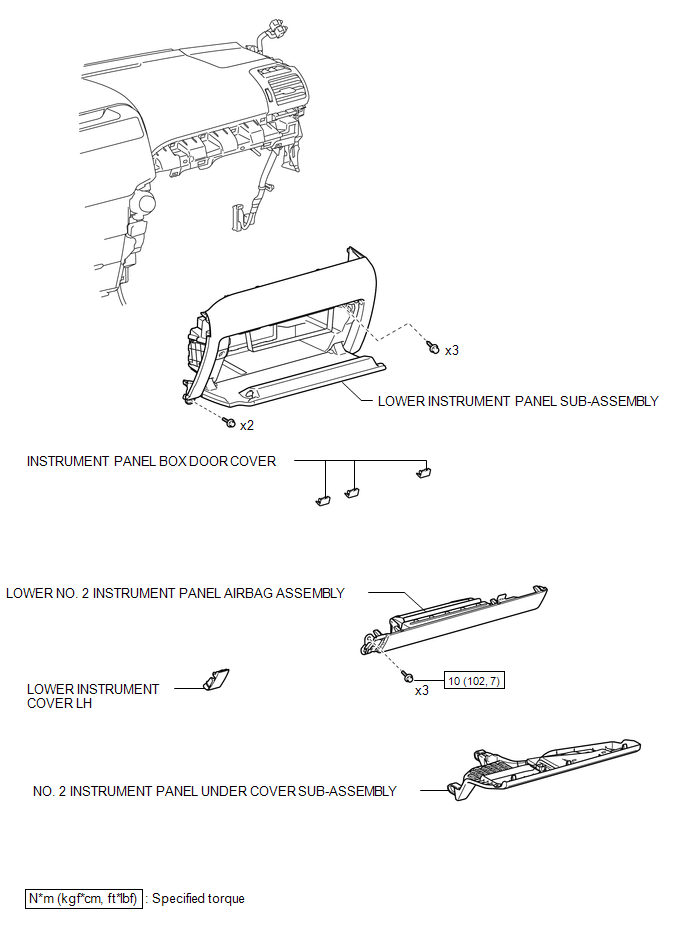

Fig 3: Instrument Panel Safety Pad Components With Torque Specifications (3 Of 7) [08/2019 - 08/2022]
GTY924950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

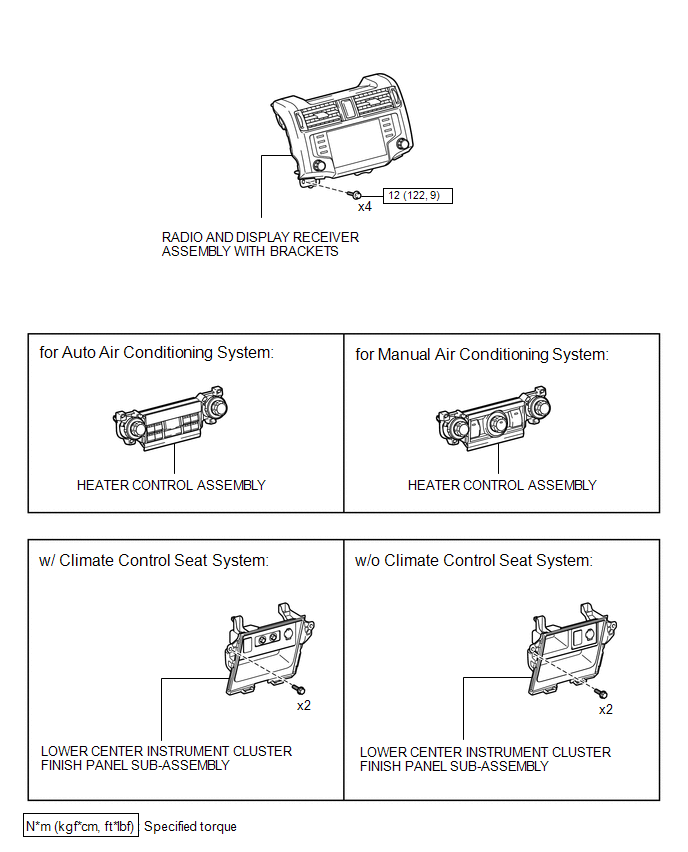

Fig 4: Instrument Panel Safety Pad Components With Torque Specifications (4 Of 7) [08/2019 - 08/2022]
GTY857959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

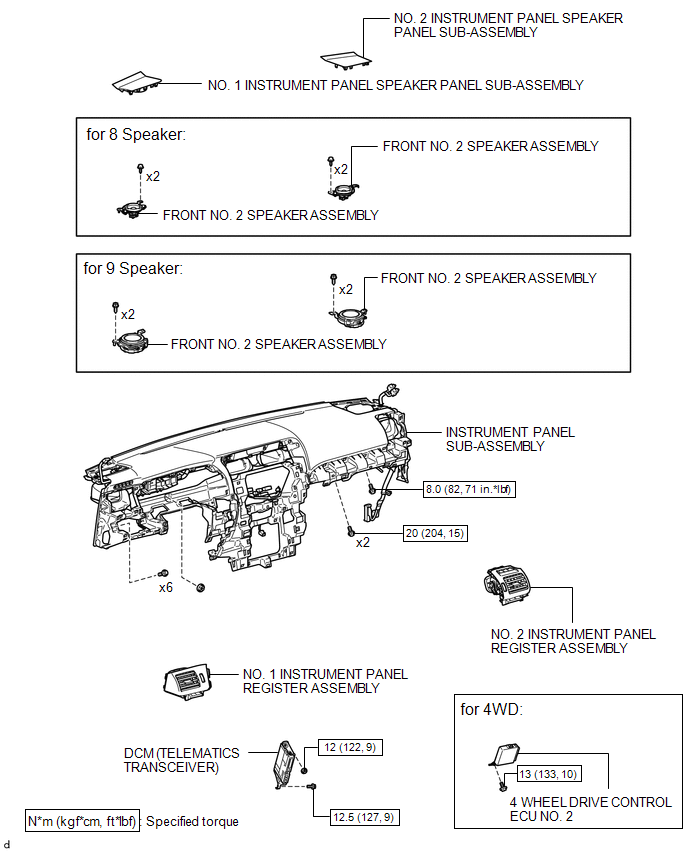

Fig 5: Instrument Panel Safety Pad Components With Torque Specifications (5 Of 7) [08/2019 - 08/2022]
GTY853779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

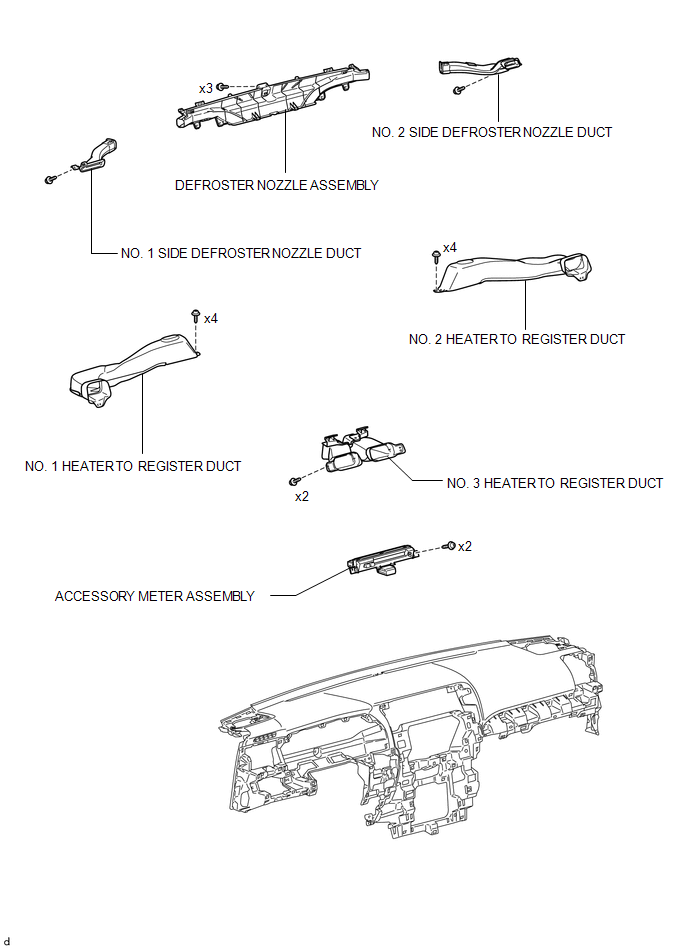

Fig 6: Instrument Panel Safety Pad Components (6 Of 7) [08/2019 - 08/2022]
GTY911023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

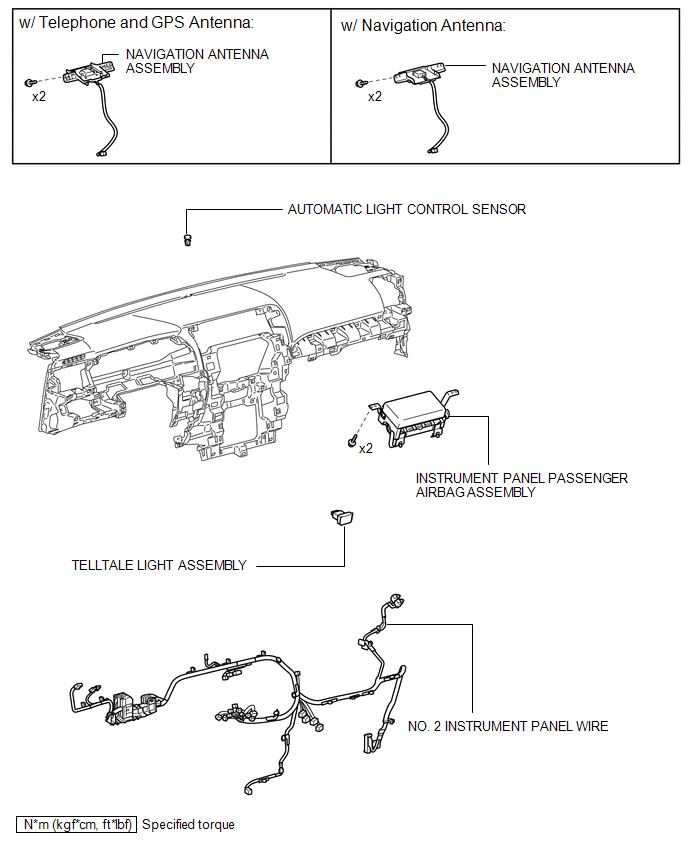

Fig 7: Instrument Panel Safety Pad Components With Torque Specifications (7 Of 7) [08/2019 - 08/2022]
GTY856989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
