Components [08/2015 - 08/2019]

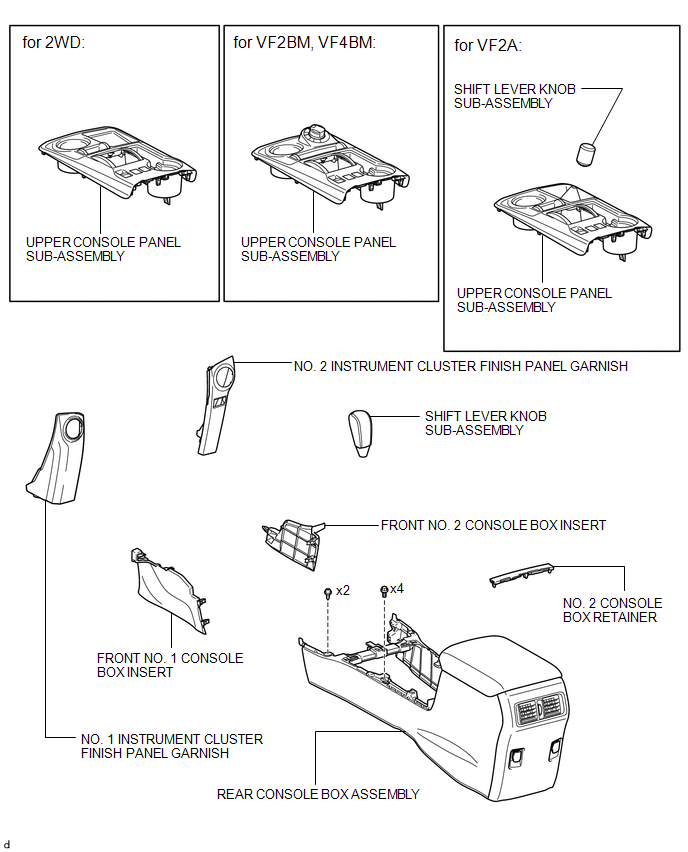

Fig 1: Front Console Box Replacement Components (1 Of 4) [08/2015 - 08/2019]
GTY729465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

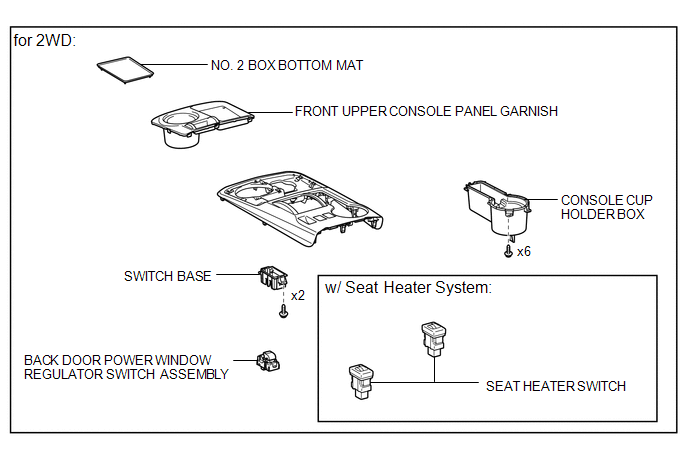

Fig 2: Front Console Box Replacement Components (2 Of 4) [08/2015 - 08/2019]
GTY724739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

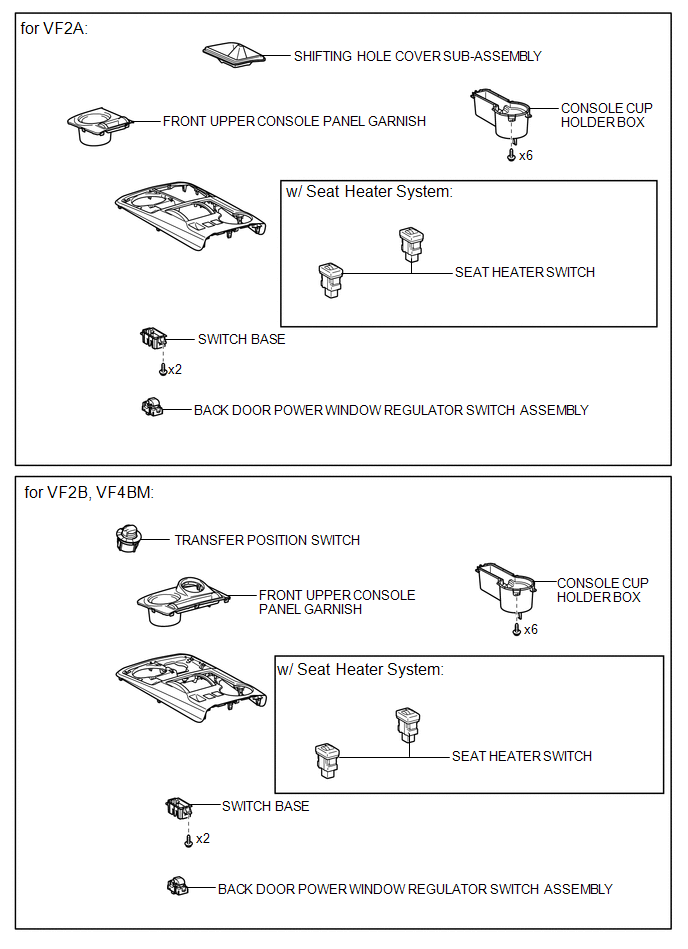

Fig 3: Front Console Box Replacement Components (3 Of 4) [08/2015 - 08/2019]
GTY734175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

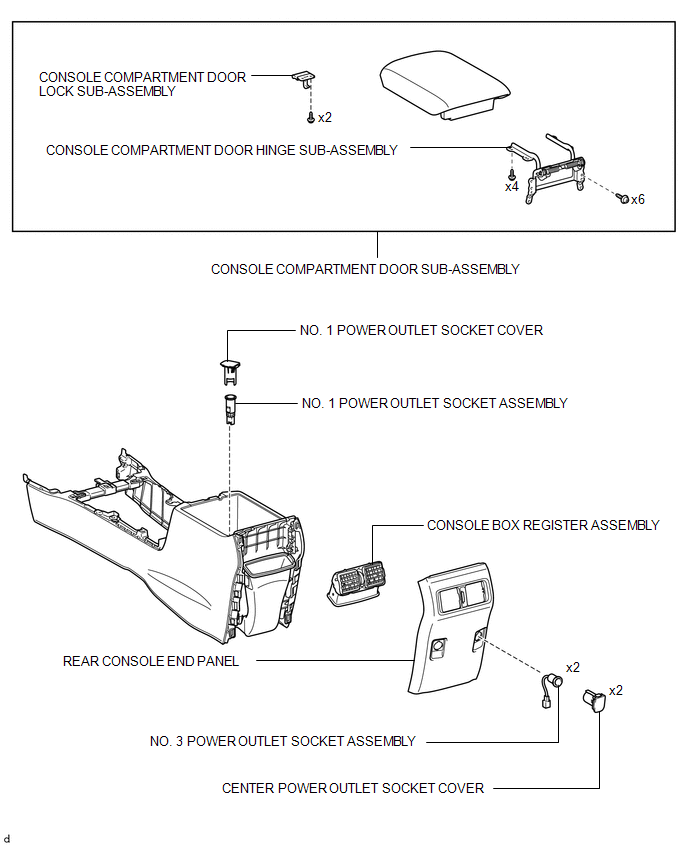

Fig 4: Front Console Box Replacement Components (4 Of 4) [08/2015 - 08/2019]
GTY697009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
