Removal [08/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE AUTOMATIC TRANSMISSION WITH TRANSFER
    1. Remove the automatic transmission with transfer (Refer to REMOVAL [08/2015 - 08/2019] , or refer to REMOVAL [08/2019 - ] ).
  2. REMOVE TRANSFER ASSEMBLY

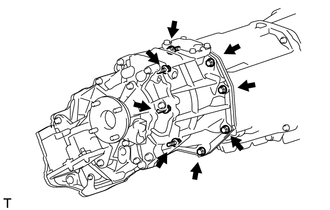

    1. Remove the 8 bolts.
      GTY236649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the transfer from the automatic transmission.
