System Diagram [08/2015 - 08/2019]

WARNING: This page is about a different variant/trim than selected.

The configuration of the electronic control system for the A750E automatic transmission is as shown in the following chart.

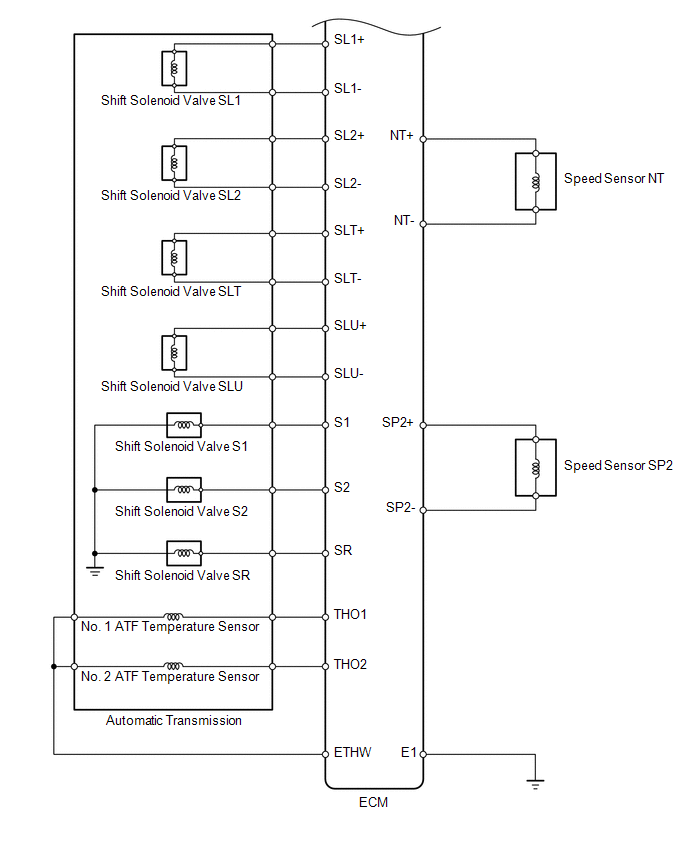

Fig 1: Automatic Transmission System Wiring Diagram (08/2015 - 08/2019) (1 Of 2)

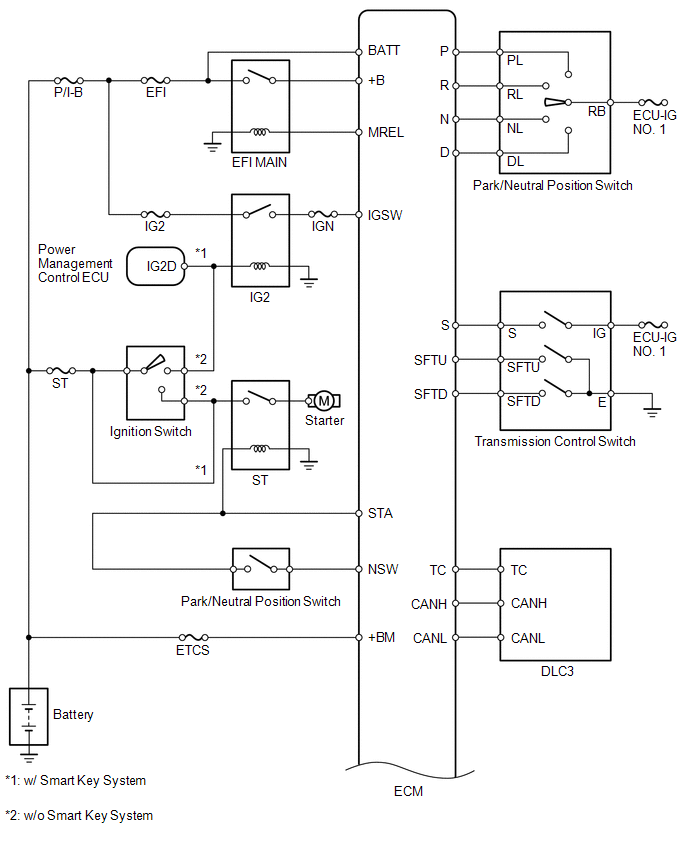

Fig 2: Automatic Transmission System Wiring Diagram (08/2015 - 08/2019) (2 Of 2)
