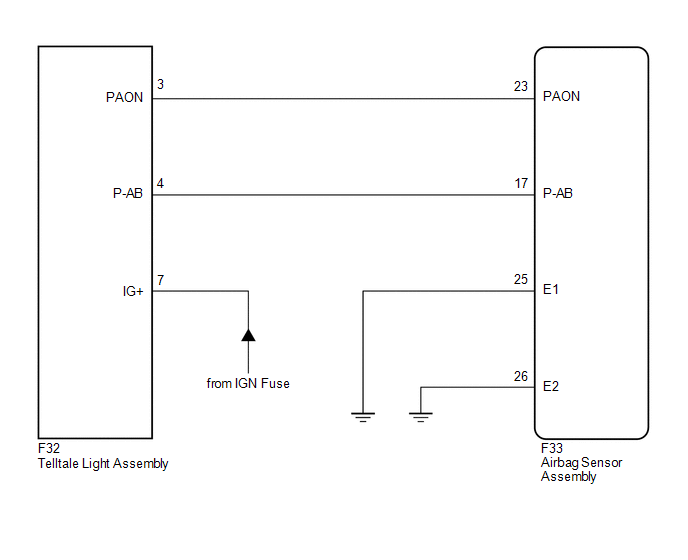

DTC B1660-43: Passenger Airbag ON/OFF Indicator Circuit Malfunction [08/2018 - 08/2019]: Wiring Diagram

GTY698658

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
