Removal [08/2015 - ]: Procedure
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - 08/2022] , or refer to INITIALIZATION [08/2022 - ] ).
- DRAIN BRAKE FLUID NOTE:
Wash off brake fluid immediately if it comes into contact with a painted surface.
- REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
- Remove the lower No. 1 instrument panel airbag assembly (Refer to REMOVAL [08/2015 - ] ).
- REMOVE PUSH ROD PIN
- Remove the clip and push rod pin from the brake pedal lever.
- REMOVE HYDRAULIC BRAKE BOOSTER ASSEMBLY

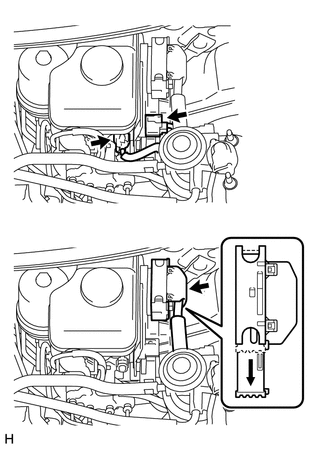

- Disconnect the 3 connectors from the hydraulic brake booster assembly.
- Use tags or make a memo to identify the place to reconnect.TEXT IN ILLUSTRATION

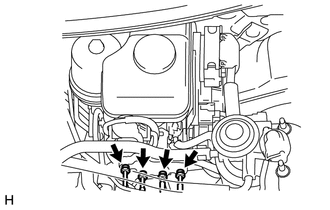

*a To rear wheel cylinder RH *b To front wheel cylinder RH *c To front wheel cylinder LH *d To rear wheel cylinder LH - Using a union nut wrench, disconnect the 4 brake lines from the hydraulic brake booster assembly.
- Remove the 4 nuts and pull out the hydraulic brake booster assembly.
- Disconnect the 3 connectors from the hydraulic brake booster assembly.
- REMOVE BRAKE BOOSTER GASKET
- Remove the brake booster gasket from the brake master cylinder.
