Inspection [08/2015 - ]: Procedure

  1. INSPECT BRAKE BOOSTER PUMP ASSEMBLY

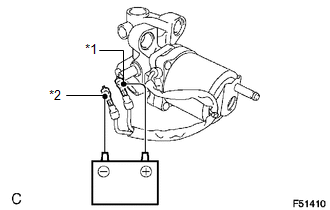

    1. Apply battery voltage to the brake booster pump cables, and check the operation of the pump motor.
      GTY736209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK:

      Measurement Condition Specified Condition
      Battery positive (+) voltage → Red cable terminal Pump motor operates
      Battery negative (-) voltage → Black cable terminal
      TEXT IN ILLUSTRATION

      *1 Red Cable
      *2 Black Cable

      If the result is not as specified, replace the brake booster pump assembly.
