Disposal [08/2015 - ]: Procedure

DISPOSE OF BRAKE BOOSTER ACCUMULATOR ASSEMBLY

Place the brake booster accumulator assembly in a vise and cover it with cloth.

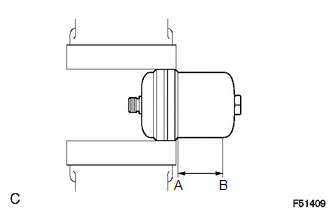

Using a saw, cut the brake booster accumulator body between A and B as shown in the illustration to discharge the gas inside.
WARNING:
- Cover the accumulator with a piece of cloth when working because gas may blow out.
- Cut the accumulator carefully, not abruptly.
- Wear protective glasses.
When the outer body of the brake booster accumulator is cut, gas and liquid discharge.
HINT:

The gas is colorless, odorless and non-poisonous.
