Removal [08/2015 - ]: Procedure

  1. DRAIN BRAKE FLUID
    NOTE:

    Wash off brake fluid immediately if it comes in contact with any painted surface.

  2. REMOVE BRAKE MASTER CYLINDER SUB-ASSEMBLY

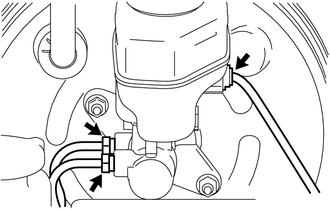

    1. Disconnect the connector.
      GTY545912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a union nut wrench, disconnect the 2 brake lines from the brake master cylinder sub-assembly.

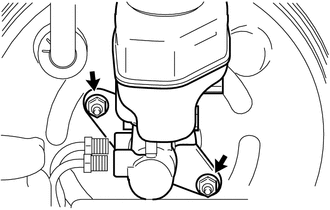

    3. Remove the 2 nuts and brake master cylinder sub-assembly.
      GTY599128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • The master cylinder requires careful handling. Do not allow the master cylinder to receive any impact, such as from being dropped. Do not reuse a master cylinder that has been dropped.
      • Do not strike or pinch the master cylinder piston, and do not cause any damage to the master cylinder piston by any other means.
      • When installing the master cylinder to the brake booster or removing the master cylinder from the brake booster, make sure that the master cylinder is kept horizontal or with its tip facing downward (the piston faces upward) to prevent the master cylinder piston from falling out.
      • Do not allow any foreign objects to contaminate the master cylinder piston. If a foreign object gets on the piston, remove it by using a piece of cloth, and then apply an even layer of lithium soap base glycol grease around the circumference (sliding part) of the piston.
      • Do not use any other type of grease or fluid.
      • Be careful not to damage the brake tubes.
    4. Remove the O-ring from the brake master cylinder sub-assembly.
