Inspection [08/2015 - ]: Procedure

HINT:

Adjust the booster push rod when the master cylinder is replaced with a new one. Adjustment is not necessary when the master cylinder is reinstalled and the booster is replaced with a new one.

1. Apply chalk to the tip of the accessory tool.

   HINT:

   An accessory tool is included with a new brake master cylinder sub-assembly.

2. Place the accessory tool on the brake booster assembly.

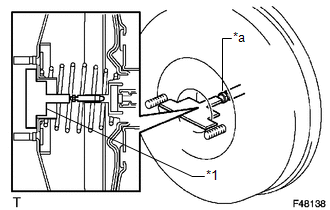

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *1	Accessory Tool
   *a	Apply Chalk

3. Measure the clearance between the brake booster push rod and accessory tool.

   Standard clearance

   0 mm (0 in.)

   HINT:

   Adjust the clearance in the following cases:

   • If there is a clearance between the accessory tool and the shell of the brake booster (floating accessory tool), the push rod is protruding too far.
   • If the chalk does not stick on the tip of the brake booster push rod, the push rod protrusion is insufficient.
4. If the clearance is not within the standard, adjust the length by holding the rod using SST and turning the tip of the rod using a 7 mm socket driver.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09737-00020
   NOTE:

   Check the push rod clearance again after adjusting.
