Components [08/2015 - ]

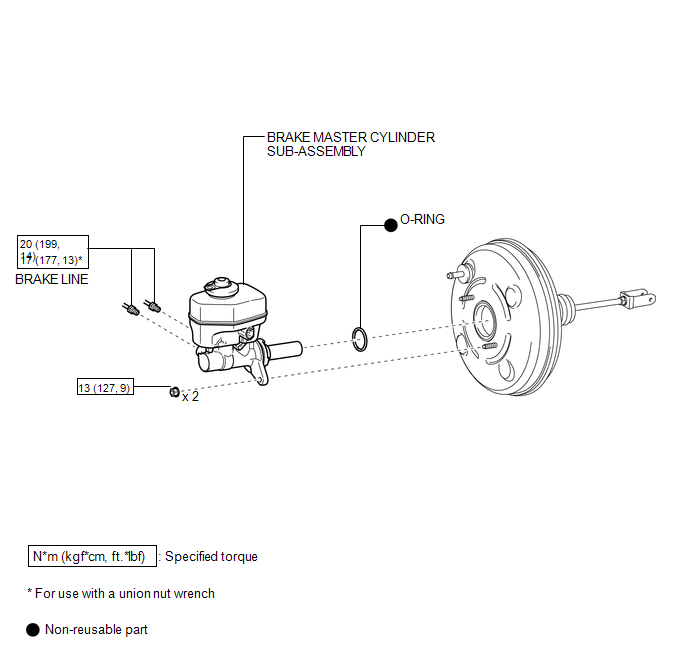

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 2)
GTY688246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

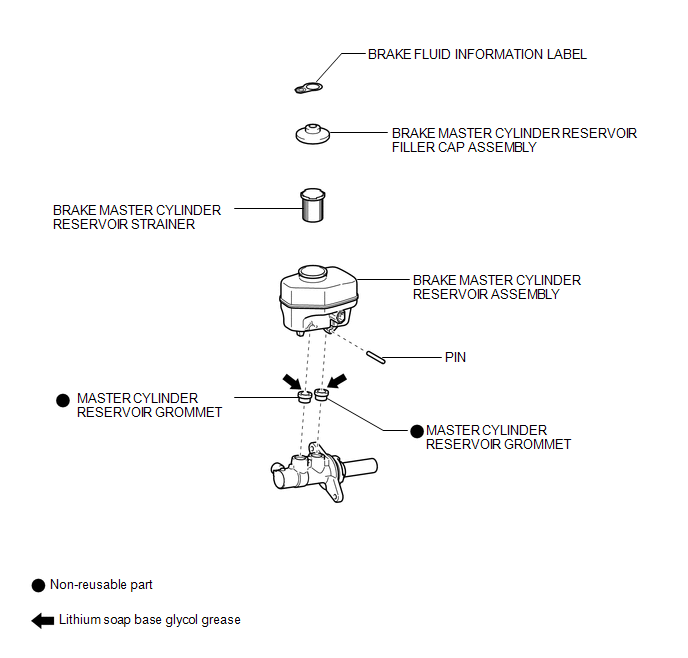

Fig 2: Brake Master Cylinder Replacement Components (2 Of 2)
GTY711246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
