Components [08/2020 - 08/2021]

Fig 1: Front Bumper Replacement Components (1 Of 3) [08/2020 - 08/2021]
GTY894851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

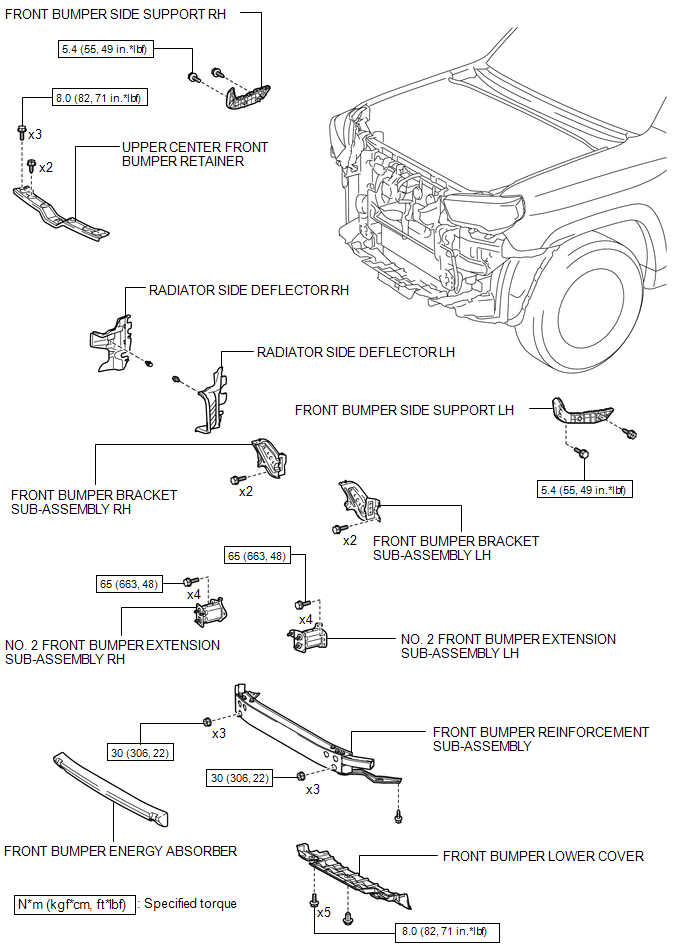

Fig 2: Front Bumper Replacement Components With Torque Specifications (2 Of 3) [08/2020 - 08/2021]
GTY1005244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

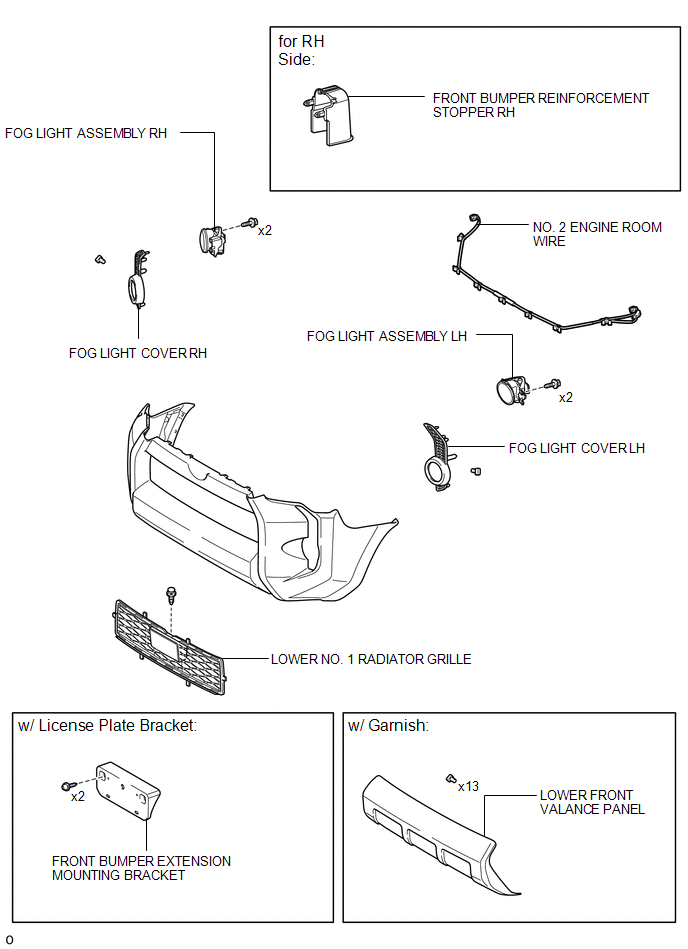

Fig 3: Front Bumper Replacement Components (3 Of 3) [08/2020 - 08/2021]
GTY1012599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
