Components [08/2015 - 08/2019]

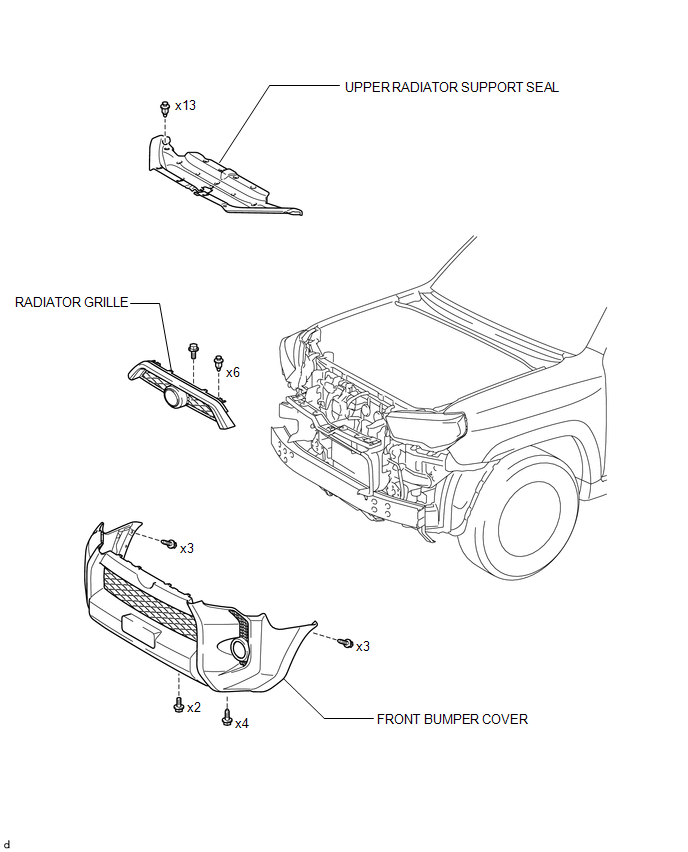

Fig 1: Front Bumper Replacement Components (1 Of 3) [08/2015 - 08/2019]
GTY696308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

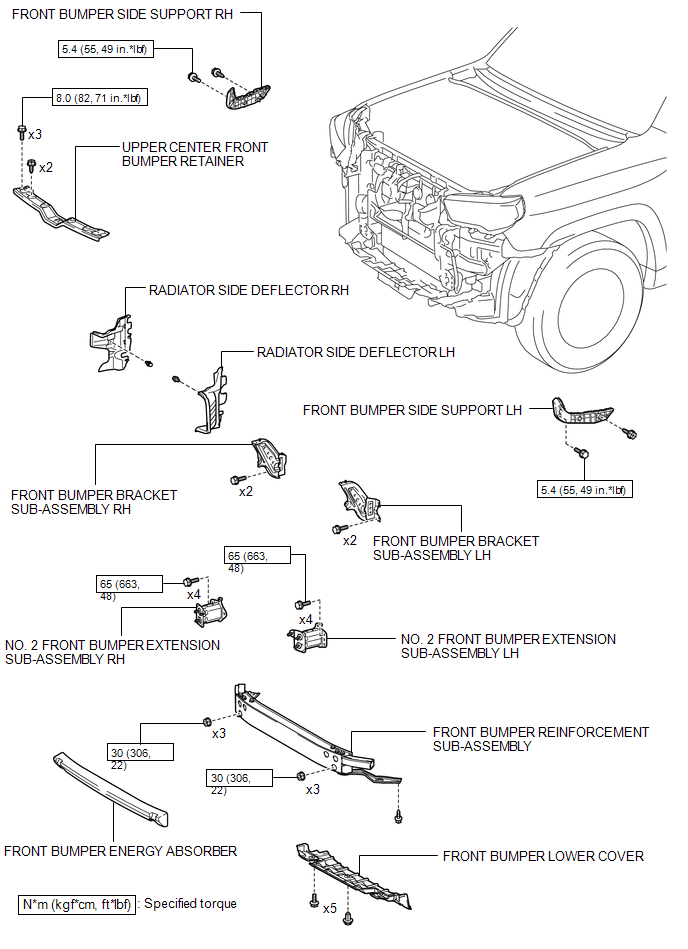

Fig 2: Front Bumper Replacement Components With Torque Specifications (2 Of 3) [08/2015 - 08/2019]
GTY693279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

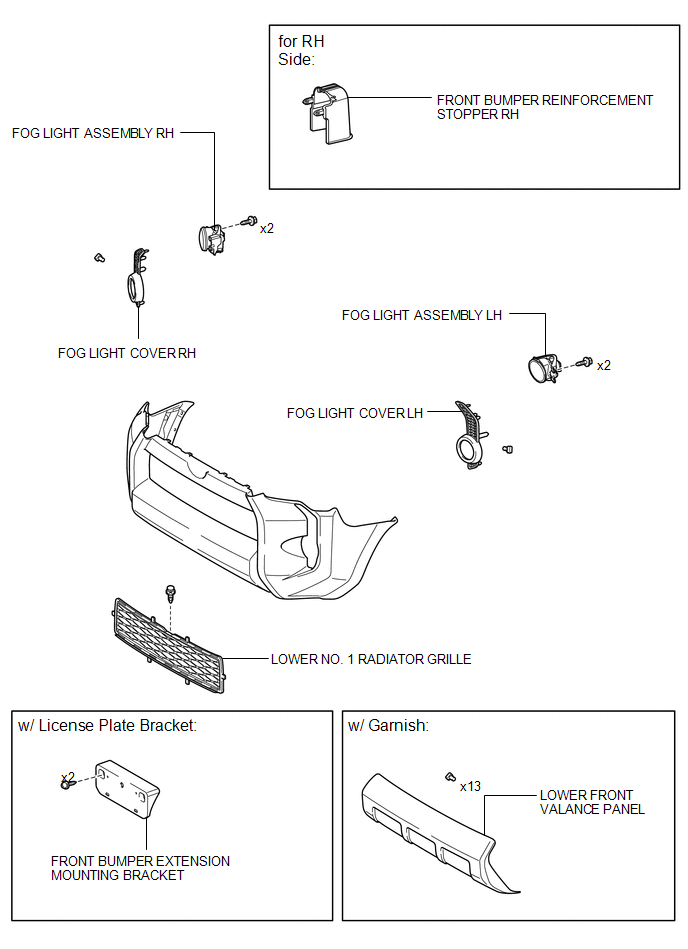

Fig 3: Front Bumper Replacement Components (3 Of 3) [08/2015 - 08/2019]
GTY687139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
