Removal [08/2015 - ]: Procedure

  1. REMOVE STOP LIGHT SWITCH ASSEMBLY

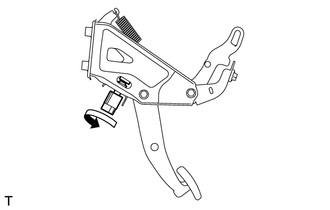

    1. Disconnect the connector.
      GTY222316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the stop light switch counterclockwise and remove the stop light switch.
  2. REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER
    1. Remove the stop light switch mounting adjuster.
